48V 200Ah 10Kwh Solar Energy Battery
1. Capacity: 51.2V 200Ah(10kwh)
2. Grade A CATL Cells
3. With Bms Inside
4. 6000+ Cycle Time
5. 10 Years Warranty

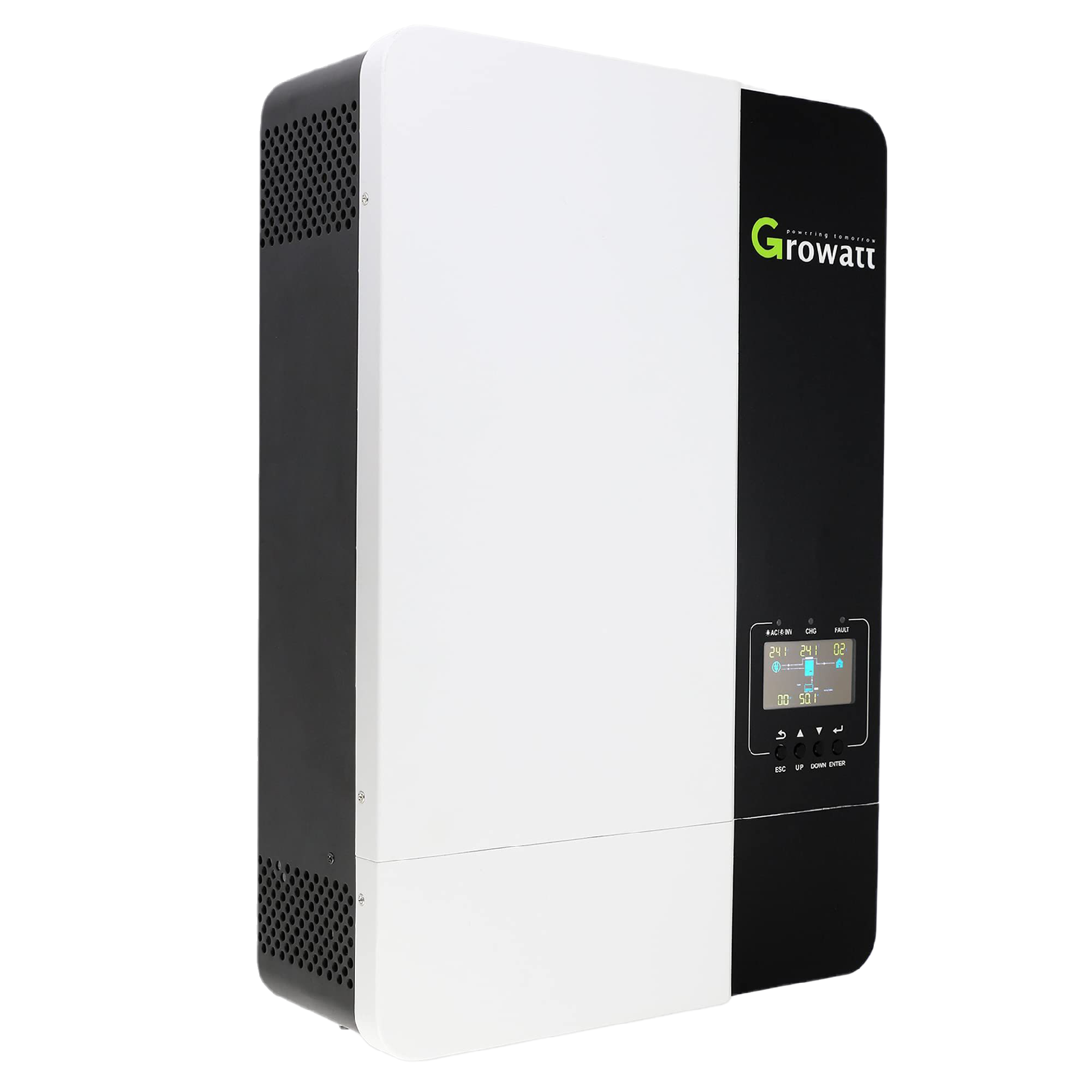

Solar Inverter
Model Number: 48V Growatt SPF 5000es
Battery Voltage:48VDC
Reted Power: 5000VA/ 5000W
Parallel Capability:6 units maximum
AC Voltage Regulation (Battery Mode)：230VAC +- 5% @ 50/60Hz
Surge Power：1000VA

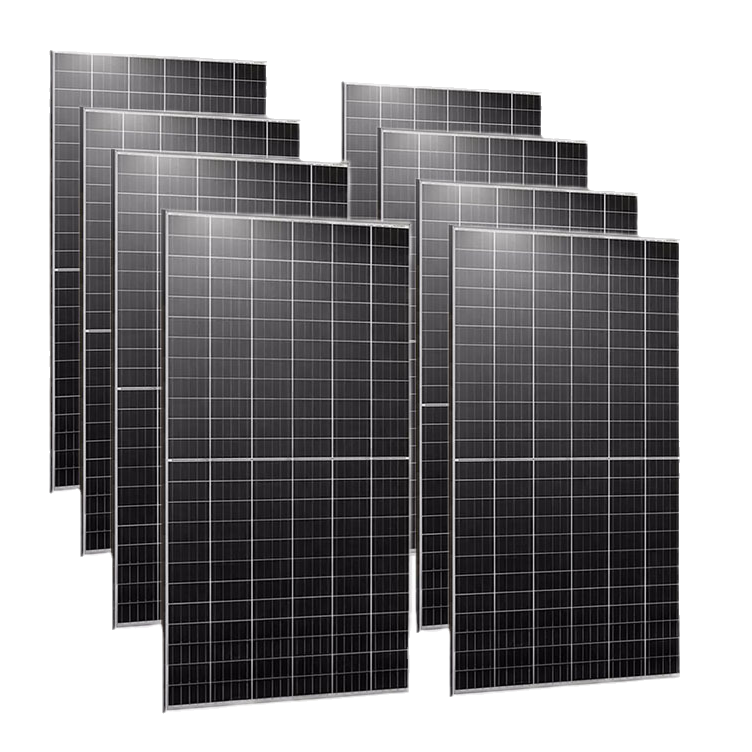

All Black Solar Panel
1. 410W Mono Facial
2. Half Cell All Black
3. SIZE:1723*113*30MM(25 Year Warranty)
4. (MOQ:1 Pallet 36pcs/Pallet)

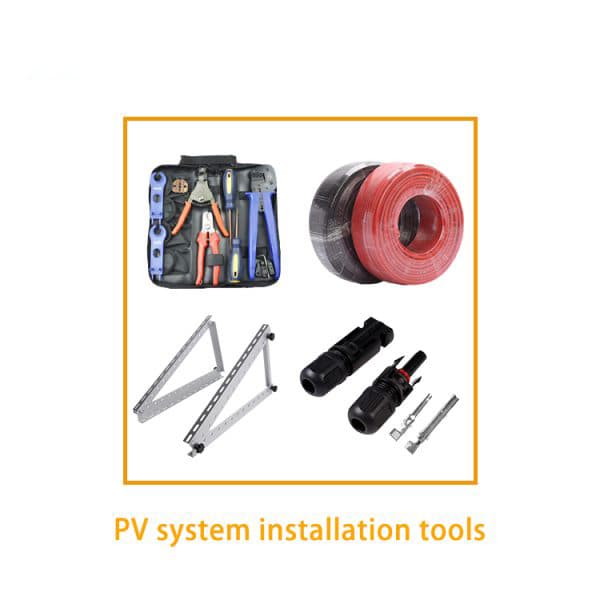

PV system installation tools
1. Disassemble Tool
2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connector Assembly

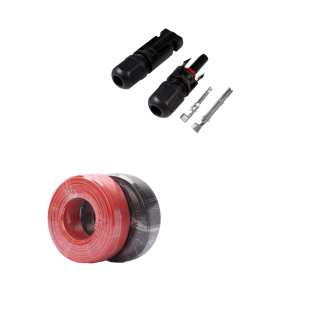

MC4 Connector:
1. Rated Current: 30A
2. Rated Voltage: 1500VDC
PV Cable:
1. AC Cable
2. DC Switches
3. AC Breaker
4. AC/DC Combine Box
5. PV Cable 4MM2 6MM2

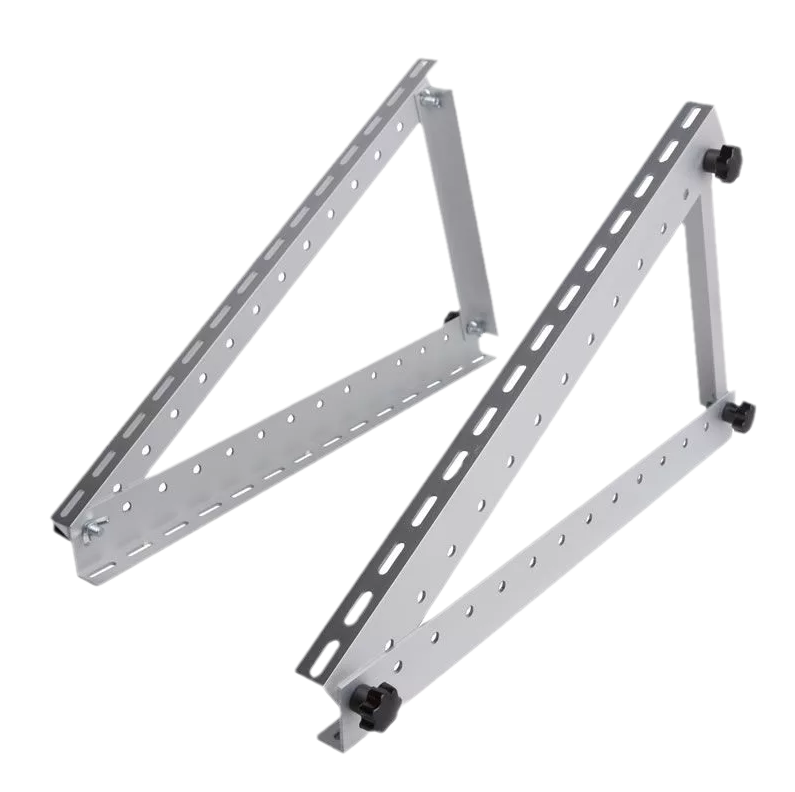

Mounting Structure
1. Ground Solar Mounting System

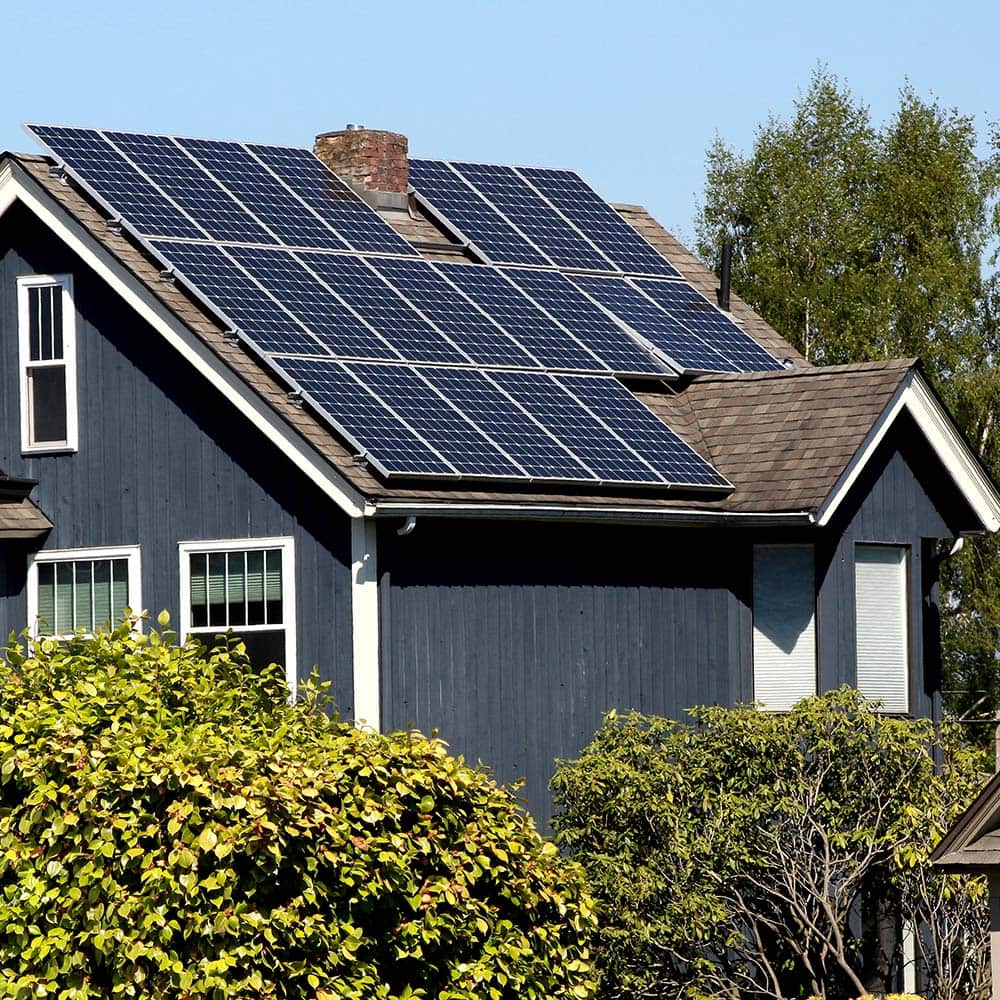

2. Residential Roof(Pitched Roof)
3. Car Parking Solar Mounting System
4. Vertical Wall Solar Mounting System
5. Commercial Roof(Flat Roof&Workshop Roof)
6. All Aluminum Structure Solar Mounting System
How to install

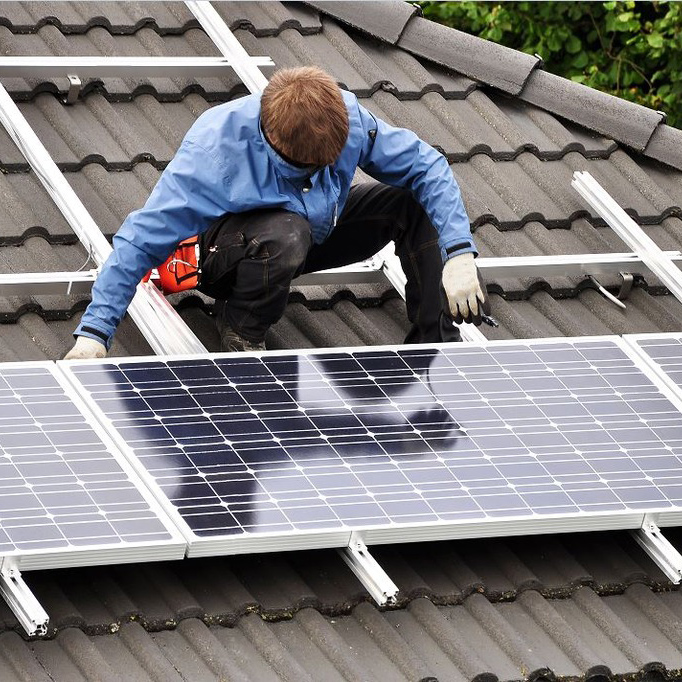

1. Install the brackets

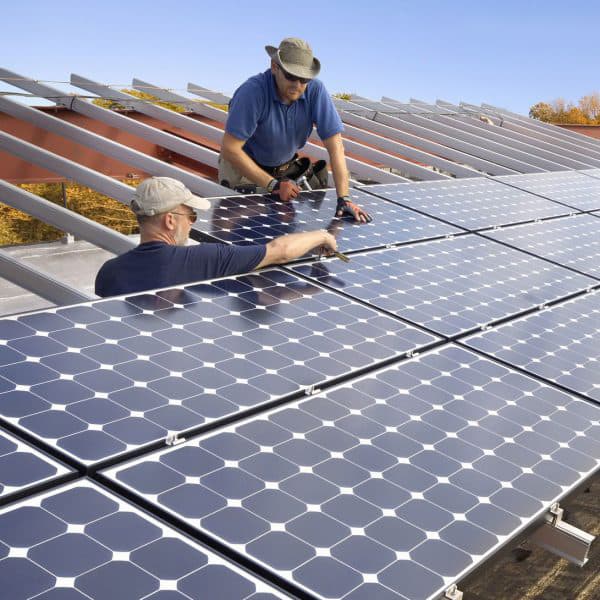

2. Install the PV components

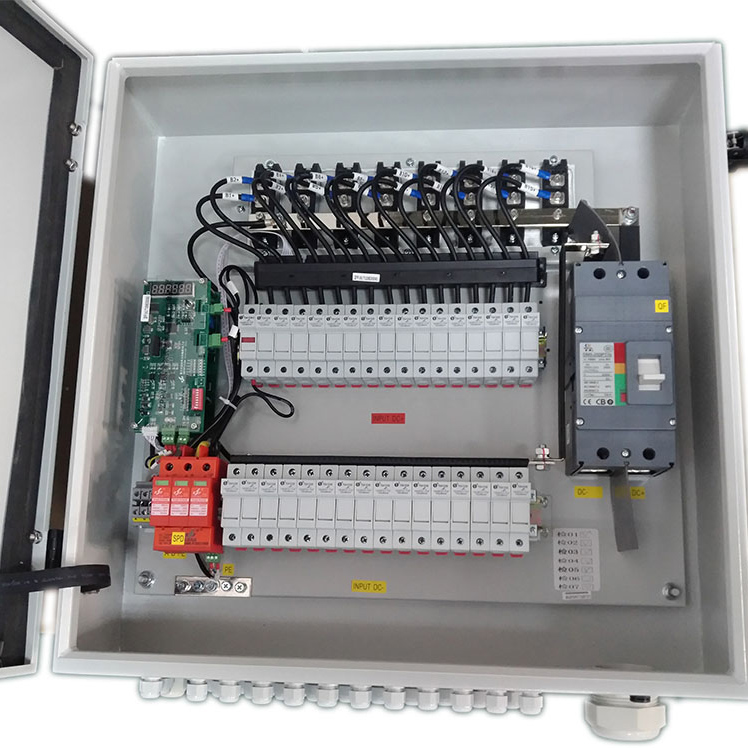

3. PV Junction Box

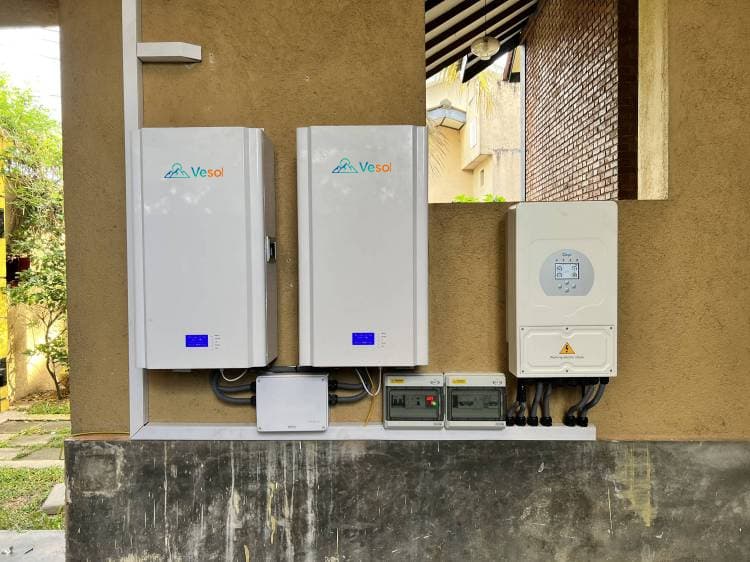

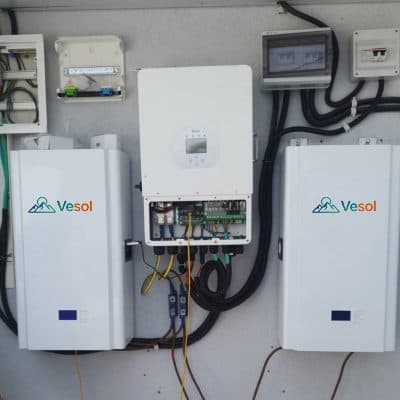

4. Inverter and Battery
Vesol advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
| Vesol 10KW Eu Verison 1 Phase Hybrid Solar Energy System | |||||
| Parameters | Model | DW01LV-5KW-10 LP1-EU/US | DW01LV-8KW-20 LP1-EU/US | DW01LV-12KW-30 LP1-EU/US | |
| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.68 | 11.68 | 11.68 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||
| Quantity | Pcs | 10 | 16 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
| Storage Battery | Model | DW-10KWESS*1 | DW-10KWESS*2 | DW-10KWESS*3 |
Cell Type | Li-ion(LFP) | |||
Nominal Voltage（V） | 51.2 | |||
Normal Capacity | 200AH | |||
Total Energy(KWH) | 10.24 | 20.48 | 30.72 | |
Cycle times | 6000 | |||
Communication | CAN /RS485 | |||
Standard Charging / Discharging Current | 100A/100A | |||
Size(mm) | 360*190 x700 /SET | |||
Weight(KG) | 98/SET | |||
Water proof | IP21 | |||
Warranty time | 10 years | |||
Certificate | UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) | |||
Inverter | ||||
Model | SPF 5000 US | |||
Battery Voltage | 48VDC | |||
Battery Type | Lithium/Lead-acid | |||
Inverter Output | ||||
Reted Power | 5000VA/ 5000W | |||
Parallel Capability | Yes,6 units maximum | |||
AC Voltage Regulation (Battery Mode) | 230VAC +- 5% @ 50/60Hz | |||
Surge Power | 1000VA | |||
Efficiency (Peak) | 93% | |||
Waveform | Pure sine wave | |||
Transfer Time | 10 ms typical 20 ms max | |||
Solar Charger | ||||
Maximum PV Array Power | 6000W | |||
MPPT Range @ Operating Voltage | 120VDC – 430VDC | |||
Maximum PV Array Open Circuit Voltage | 450VDC | |||
Maximum Solar Charge Current | 100A | |||
AC Charger | ||||
Charge Current | 80A | |||
AC Input Voltage | 230 VAC | |||
Selectable Voltage Range | 170-280 VAC (For Personal Computers): 90-280 VAC (For Home Appliances) | |||
Frequency Range | 50Hz/60Hz (Auto sensing) | |||
Physical | ||||
Protection Degree | IP20 | |||
Dimension (D/W/H) | 330*485*135mm | |||
Net Weight (kgs) | 12kgs | |||
Operating Environment | ||||
Humidity | 5% to 95% RelativeHumidity(Non-condensing) | |||
Operating Temperature | 0°C – 55℃ | |||
Storage Temperature | -15°℃ – 60℃ | |||
