Vesol advantage:
1.Intelligent and efficient：
- Storage of surplus electricity, improve the use rate of PV power .
- PV and mains can charge the battery
- Flexible configuration of lead-acid and lithium-ion batteries
- All in one design: charging, control , inverter
- Compatible with off-grid and on-grid modes
2.Flexible operation：
- Various communication ：Wi-Fi/Ethernet/GPRS/RS485
- Peak and valley time can be set, automatic peak cutting and valley filling.
- Remote control by computer or phone
- LCD display,easy operation
3. Stable and reliable.
- High protectionand A grade battery cell
- Smart BMS to ensure battery life
- Heat dissipation, reduce failure rate
- 4.EU/US MARKET AVAILABLE
- Completely system , high transformation efficiency,
- More than 6000 cycle life .
- 48V low voltage battery, transformer isolation design
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

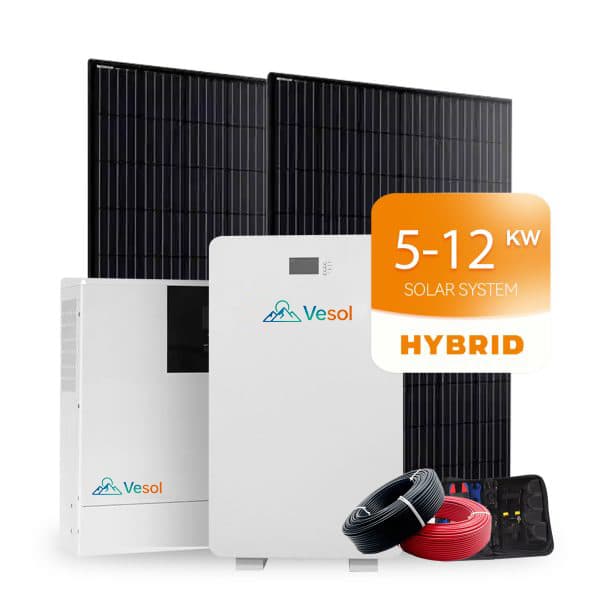

| Vesol 5-12KW Hybrid Solar Energy System | |||||
| Parameters | Model | DW01LV-5KW-10 LP1-EU/US | DW01LV-8KW-20 LP1-EU/US | DW01LV-12KW-30 LP1-EU/US | |

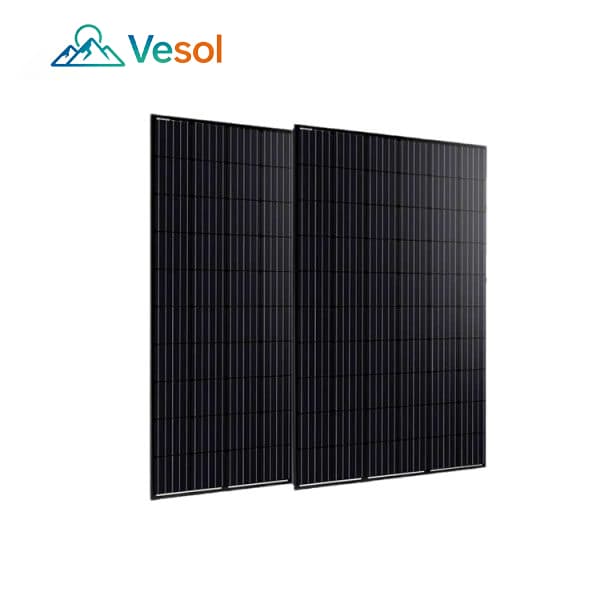

| Solar Panel Specific | Model | DW-SP-500 | DW-SP-500 | DW-SP-500 | |
| Maximum Power（Wp） | 500 | 500 | 500 | ||
| Open-Circuit Voltage(Voc)(V) | 51.01 | 51.01 | 51.01 | ||
| Operating Current (Imp)（A） | 11.68 | 11.68 | 11.68 | ||
| Short-Circuit Current (Isc)（A） | 12.46 | 12.46 | 12.46 | ||
| Quantity | Pcs | 10 | 16 | 24 | |
| Size(mm) | 2220*1102*35 | ||||
| Weight(KG) | 27 | ||||
| Warranty time | 25 years | ||||
| Certificate | IEC61215:2016;IEC61730-1/-2:2016; | ||||
| Storage Battery | Model | DW-10KWESS*1 | DW-10KWESS*2 | DW-10KWESS*3 |
Cell Type | Li-ion(LFP) | |||
Nominal Voltage（V） | 51.2 | |||
Normal Capacity | 200AH | |||
Total Energy(KWH) | 10.24 | 20.48 | 30.72 | |
Cycle times | 6000 | |||
Communication | CAN /RS485 | |||
Standard Charging / Discharging Current | 100A/100A | |||
Size(mm) | 360*190 x700 /SET | |||
Weight(KG) | 98/SET | |||
Water proof | IP21 | |||
Warranty time | 10 years | |||
Certificate | UN38.3,MSDS,UL1973(Cell),IEC62619(Cell) | |||
| Hybrid Inverter | Model | DW－5KW-DY-EU | DW－5KW-DY-US | DW－8KW-DY-EU | DW－8KW-DY-US | DW－12KW-DY-EU | |
| Battery Input Data | Battery Voltage Range (V) | 40~60 | 40~60 | 40~60 | |||
| Max. Charging &Discharging Current (A) | 120 | 190 | 240 | ||||
| PV String Input Data | Max. DC Input Power (W) | 6500 | 10400 | 15600 | |||
| Rated PV Input Voltage (V) | 370 (125~500) | 370 (125~500) | 550 (160-800) | ||||
| MPPT Range (V) | 150-425 | 150-425 | 200-650 | ||||
| PV Input Current (A) | 13+13 | 26+26 | 26+13 | ||||
| AC Output Data | Rated AC Output and UPS Power (W) | 5000 | 8000 | 120000 | |||
| Max. AC Output Power (W) | 5500 | 8800 | 13200 | ||||
| AC Output Rated Current (A) | 22.7 | 20.8 / 24 | 36.4 | 33.3 / 38.5 | 52.2 | ||
| Max. AC Output Current (A) | 25 | 22.9 / 26.4 | 40 | 36.7 / 42.3 | / | ||
| Output Frequency and Voltage | 50/60Hz; 220/230Vac | 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) | 50/60Hz; 220/230Vac (single phase) | 50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase) | 50/60Hz; L/N/PE 220/230Vac (single phase) | ||
| Grid Type | Single Phase | Split phase; Single Phase | Single Phase | Split Phase;Single Phase | Three phase | ||
| Efficiency | Max. Efficiency | 97.60% | |||||
| MPPT Efficiency | 99.90% | ||||||
| Warranty | 5 years | ||||||
| Water proof | IP65 | ||||||
| Size(mm) | 330W×580H×232D | 420W×670H×233D | 330W×580H×232D | 420W×670H×233D | 464W×798.4H×300D | ||
| Weight(KG) | 20.5 | 32 | 20.5 | 32 | 48.5 | ||
| Certificate | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||||||
