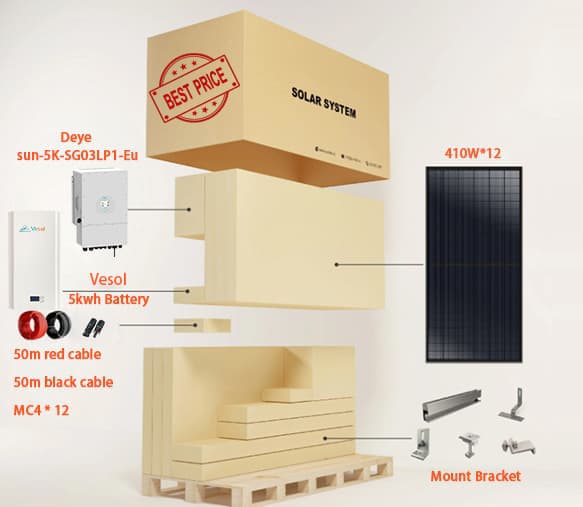

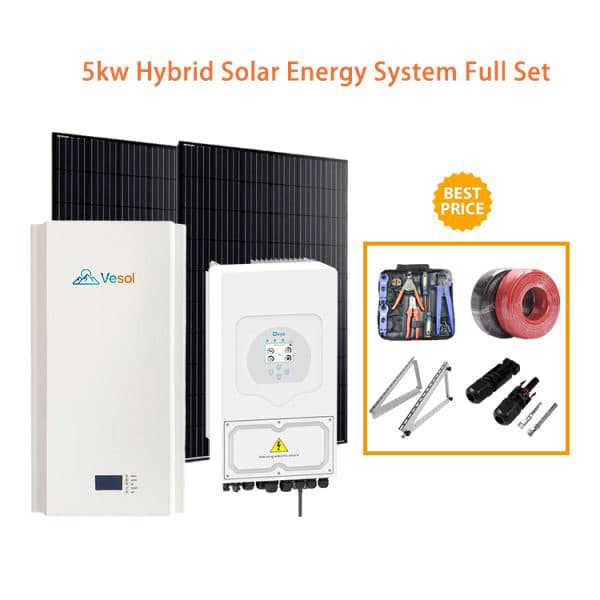

Vesol 5KW Solar Energy System Full Set 5KVA Hybrid Solar System 5000w With 5Kwh Lithium Battery

Send Inquiry

Description

48V 100Ah 5Kwh Solar Energy Battery

1. Capacity: 51.2V 100Ah(5kwh)
2. Grade A Cells
3. With Bms Inside
4. 6000+ Cycle Time
5. 10 Years Warranty

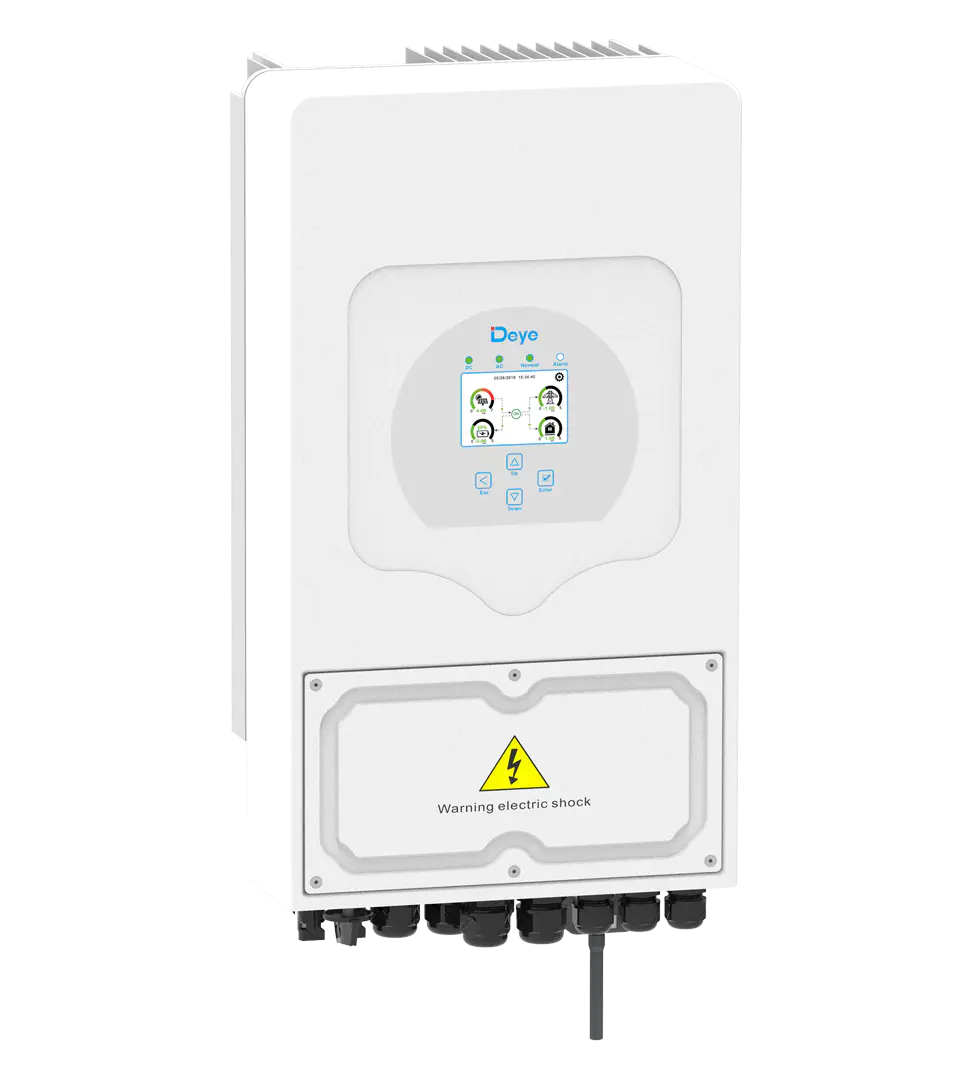

Solar Inverter

Model Number: SUN-5/6K-SG01LP1-US SUN-7.6/8K-SG01LP1-US/EU
Rated PV Input Voltage (V): 370 (125~500)
Output Frequency and Voltage: 50 / 60Hz; L1/L2/N(PE) 120/240Vac (split phase), 208Vac (2/3 phase), L/N/PE 220/230Vac (single phase)
Grid Type: Split phase; 2/3 phase; Single Phase

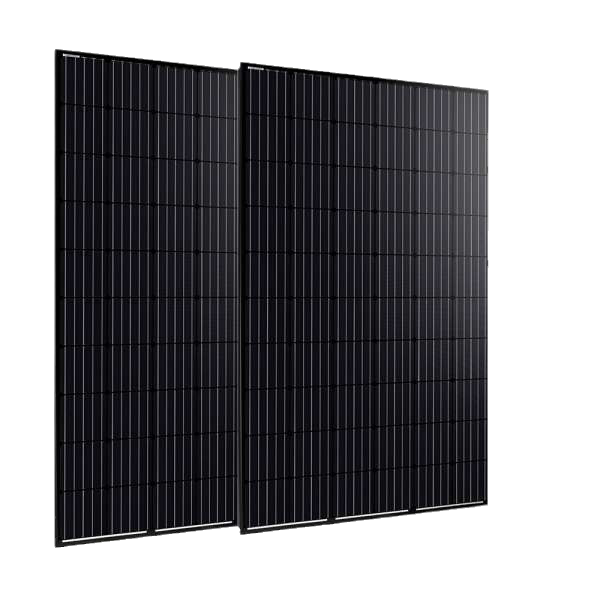

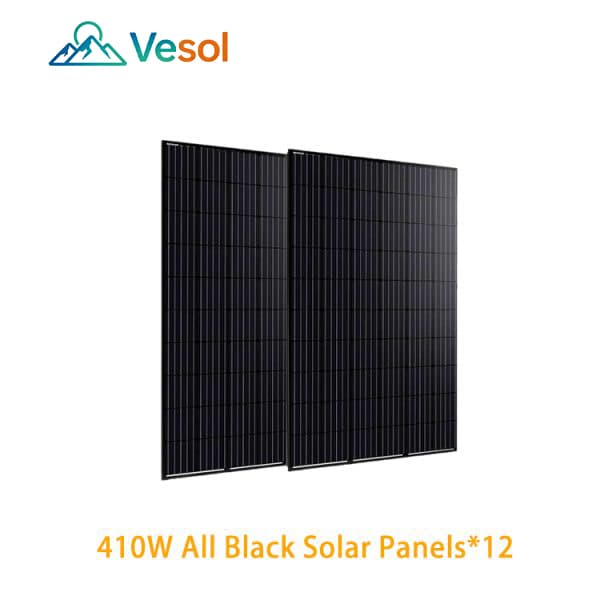

All Black Solar Panel

1. 410W Mono Facial
2. Half Cell All Black
3. SIZE:1723*113*30MM(25 Year Warranty)
4. (MOQ:1 Pallet 31pcs/Pallet)

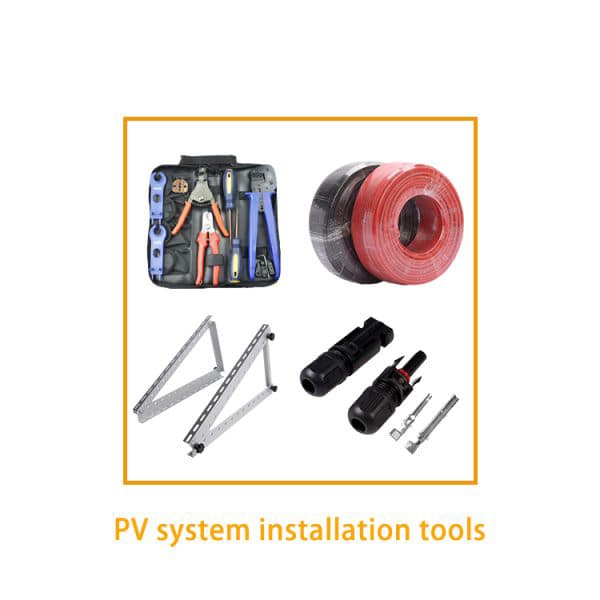

PV System Installation Tools

1. Disassemble Tool
2. MC3 MC4 Crimper
3. Wire Cable Cutter & Stripper
4. MC4 Connector Assembly

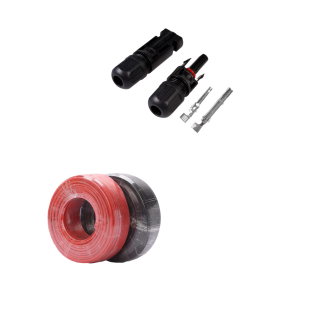

MC4 Connector:

1. Rated Current: 30A
2. Rated Voltage: 1500VDC

PV Cable:

1. AC Cable
2. DC Switches
3. AC Breaker
4. AC/DC Combine Box
5. PV Cable 4MM2 6MM2

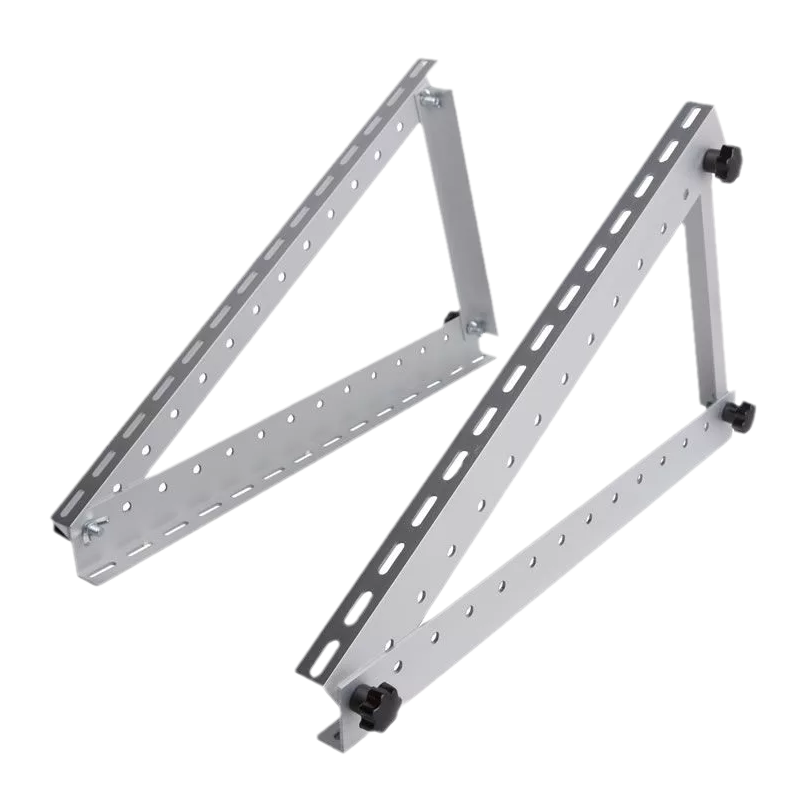

Mounting Structure

1. Ground Solar Mounting System

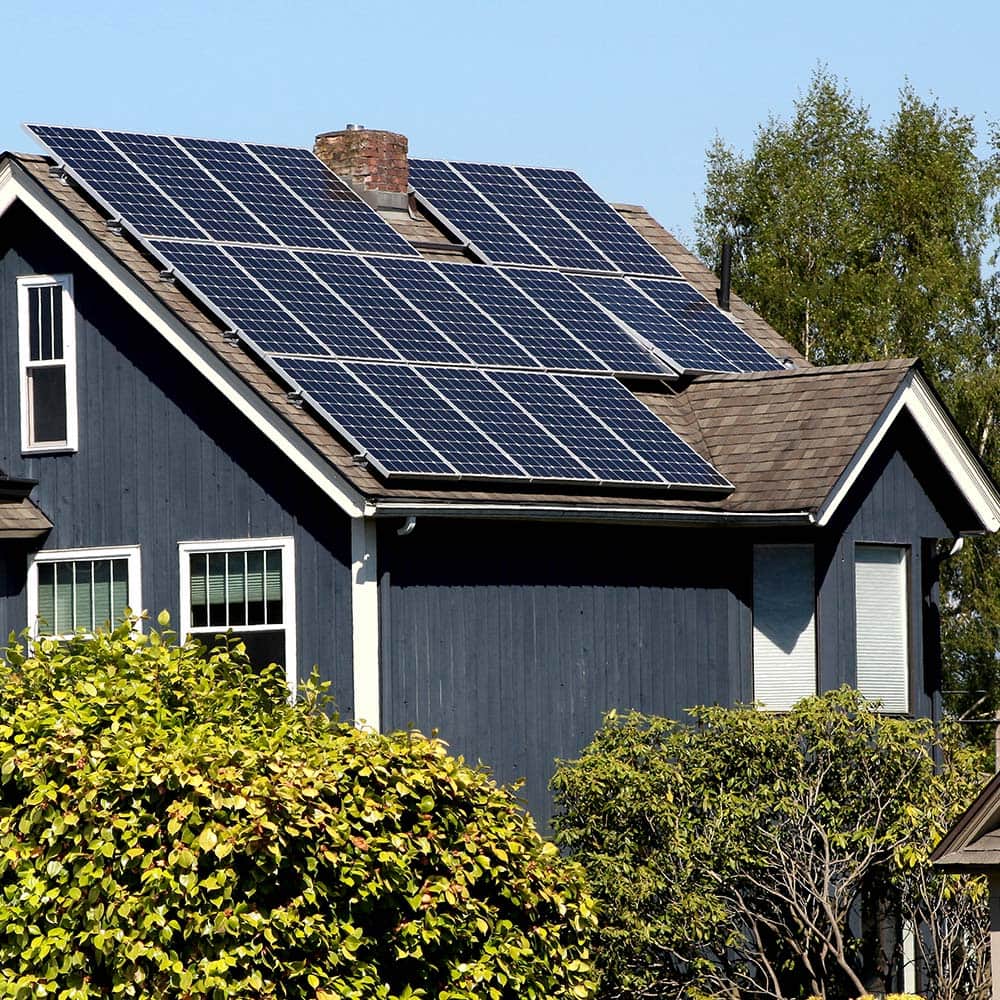

2. Residential Roof(Pitched Roof)
3. Car Parking Solar Mounting System
4. Vertical Wall Solar Mounting System
5. Commercial Roof(Flat Roof&Workshop Roof)
6. All Aluminum Structure Solar Mounting System

How to install

1. Install the brackets

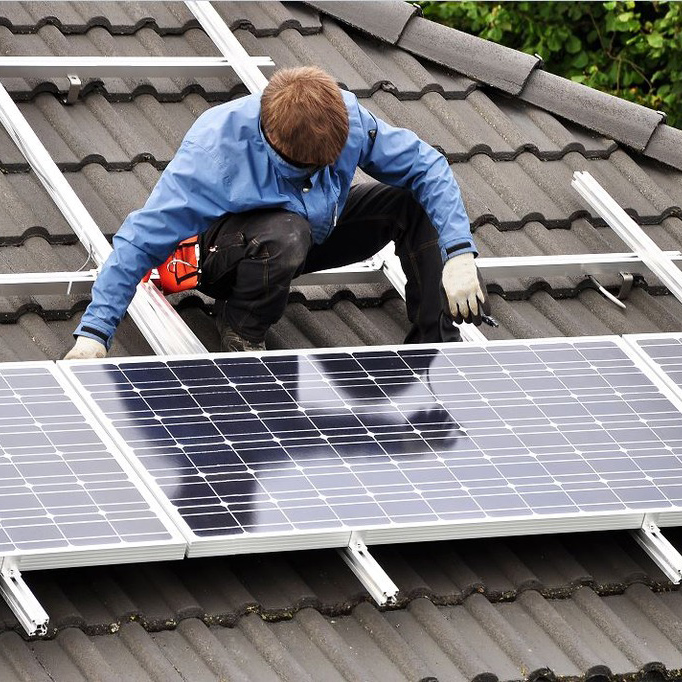

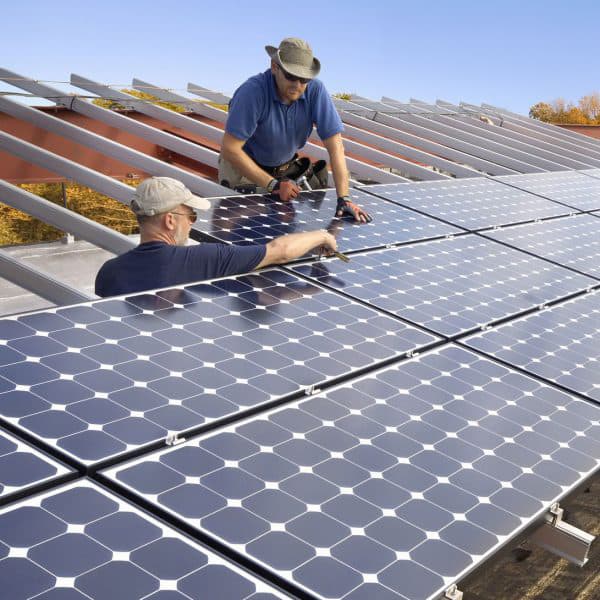

2. Install the PV components

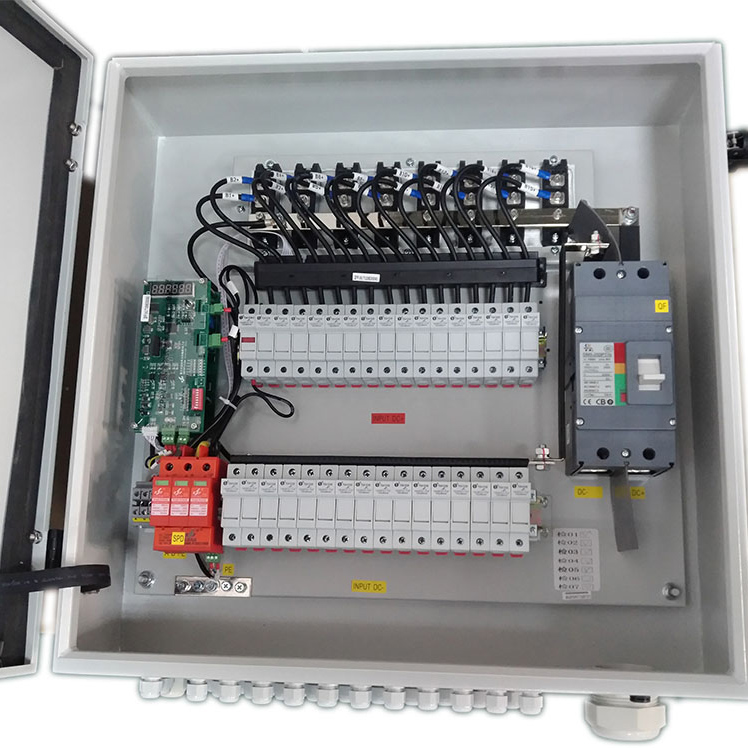

3. PV Junction Box

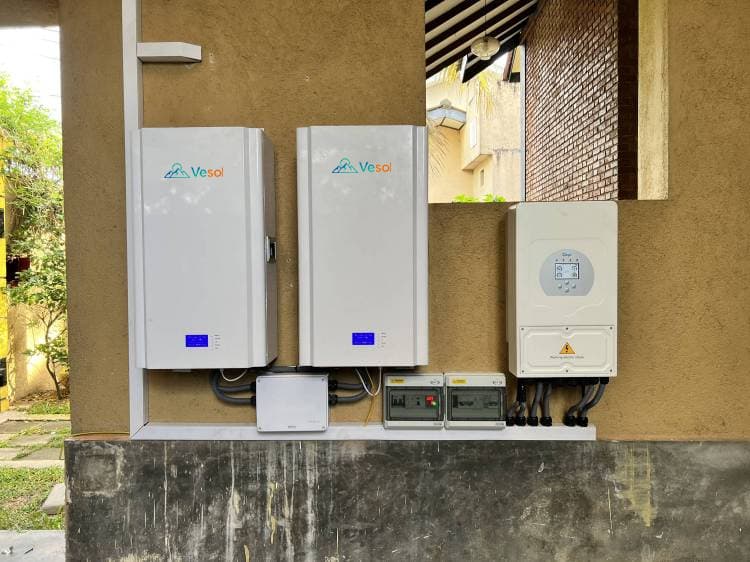

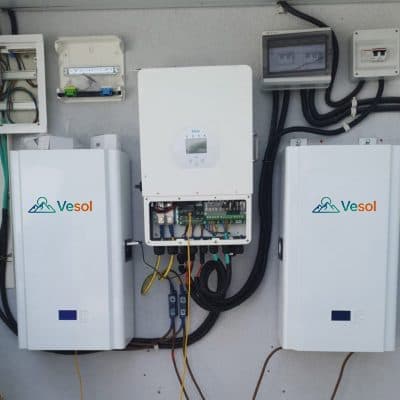

4. Inverter and Battery

Vesol advantage:

1.Intelligent and efficient：

Storage of surplus electricity, improve the use rate of PV power .
PV and mains can charge the battery
Flexible configuration of lead-acid and lithium-ion batteries
All in one design: charging, control , inverter
Compatible with off-grid and on-grid modes

2.Flexible operation：

Various communication ：Wi-Fi/Ethernet/GPRS/RS485
Peak and valley time can be set, automatic peak cutting and valley filling.
Remote control by computer or phone
LCD display,easy operation

3. Stable and reliable.

High protectionand A grade battery cell
Smart BMS to ensure battery life
Heat dissipation, reduce failure rate
4.EU/US MARKET AVAILABLE
Completely system , high transformation efficiency,
More than 6000 cycle life .
48V low voltage battery, transformer isolation design

What can Vesol do?

High Quality Products
DDP Service
Friendly and Professional Customer Service
Solar system solution design
Solar inverter, lithium battery storage system also are available.
Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

Vesol 5-12KW Hybrid Solar Energy System
Parameters	Model		DW01LV-5KW-10 LP1-EU/US	DW01LV-8KW-20 LP1-EU/US	DW01LV-12KW-30 LP1-EU/US
Solar Panel Specific	Model		DW-SP-500	DW-SP-500	DW-SP-500
	Maximum Power（Wp）		500	500	500
	Open-Circuit Voltage(Voc)(V)		51.01	51.01	51.01
	Operating Current (Imp)（A）		11.68	11.68	11.68
	Short-Circuit Current (Isc)（A）		12.46	12.46	12.46
	Quantity	Pcs	10	16	24
	Size(mm)		2220110235
	Weight(KG)		27
	Warranty time		25 years
	Certificate		IEC61215:2016;IEC61730-1/-2:2016;

Storage Battery	Model	DW-10KWESS*1	DW-10KWESS*2	DW-10KWESS*3
	Cell Type	Li-ion(LFP)
	Nominal Voltage（V）	51.2
	Normal Capacity	200AH
	Total Energy(KWH)	10.24	20.48	30.72
	Cycle times	6000
	Communication	CAN /RS485
	Standard Charging / Discharging Current	100A/100A
	Size(mm)	360*190 x700 /SET
	Weight(KG)	98/SET
	Water proof	IP21
	Warranty time	10 years
	Certificate	UN38.3,MSDS,UL1973(Cell),IEC62619(Cell)

Hybrid Inverter	Model		DW－5KW-DY-EU	DW－5KW-DY-US	DW－8KW-DY-EU	DW－8KW-DY-US	DW－12KW-DY-EU
	Battery Input Data	Battery Voltage Range (V)	40~60		40~60		40~60
		Max. Charging &Discharging Current (A)	120		190		240
	PV String Input Data	Max. DC Input Power (W)	6500		10400		15600
		Rated PV Input Voltage (V)	370 (125~500)		370 (125~500)		550 (160-800)
		MPPT Range (V)	150-425		150-425		200-650
		PV Input Current (A)	13+13		26+26		26+13
	AC Output Data	Rated AC Output and UPS Power (W)	5000		8000		120000
		Max. AC Output Power (W)	5500		8800		13200
		AC Output Rated Current (A)	22.7	20.8 / 24	36.4	33.3 / 38.5	52.2
		Max. AC Output Current (A)	25	22.9 / 26.4	40	36.7 / 42.3	/
		Output Frequency and Voltage	50/60Hz; 220/230Vac	50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase)	50/60Hz; 220/230Vac (single phase)	50 / 60Hz; 120 / 240Vac (split phase), 120 / 208Vac (2 / 3 phase), 220/230Vac (single phase)	50/60Hz; L/N/PE 220/230Vac (single phase)
		Grid Type	Single Phase	Split phase; Single Phase	Single Phase	Split Phase;Single Phase	Three phase
	Efficiency	Max. Efficiency	97.60%
		MPPT Efficiency	99.90%
	Warranty		5 years
	Water proof		IP65
	Size(mm)		330W×580H×232D	420W×670H×233D	330W×580H×232D	420W×670H×233D	464W×798.4H×300D
	Weight(KG)		20.5	32	20.5	32	48.5
	Certificate		IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
