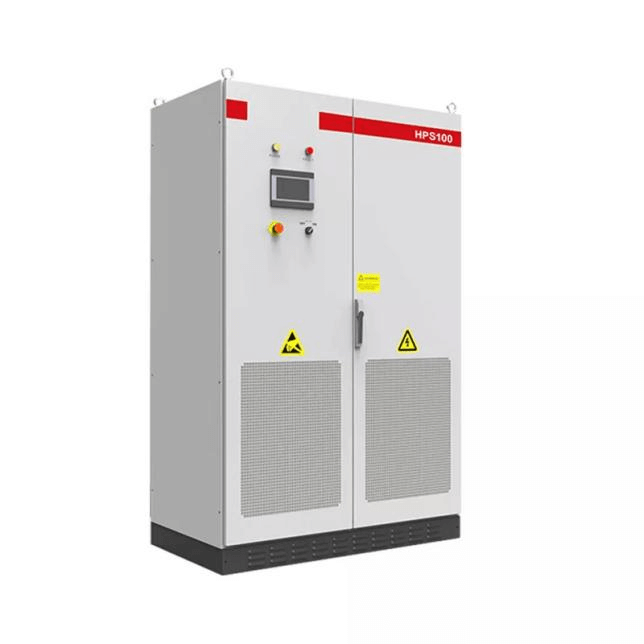

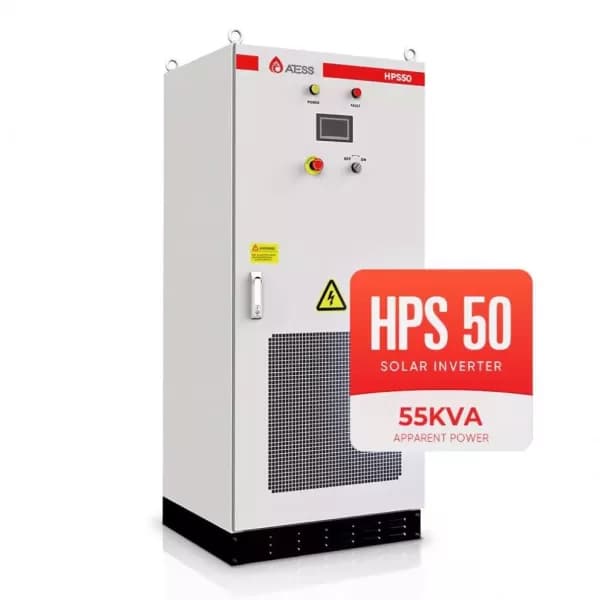

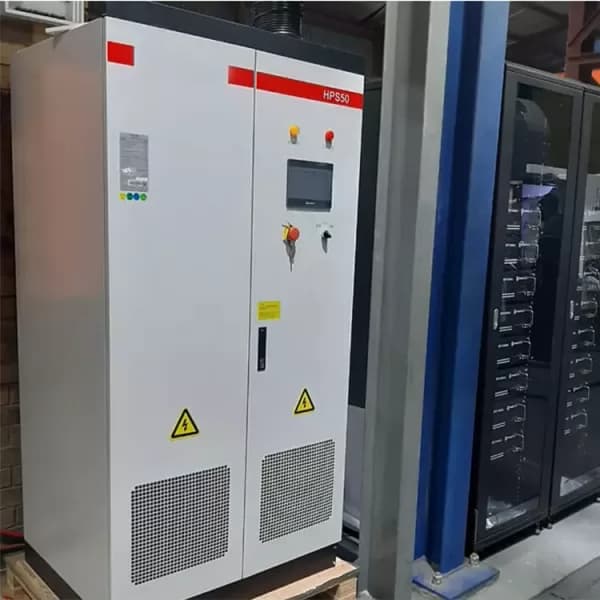

Atess HPS 50 Hybrid Solar Inverter
- A comprehensive hybrid inverter solution.
- Customizable operational modes.
- Dry contact output: Facilitating remote control of DG.
- LCD touchscreen interface: Facilitating parameter setup and maintenance.
- Expandable configuration: Multiply capacity through parallel connection of four units.
- Redundant system backup: In case of failure, another inverter seamlessly takes over.
- Smooth transition: Ensuring continuous power supply.

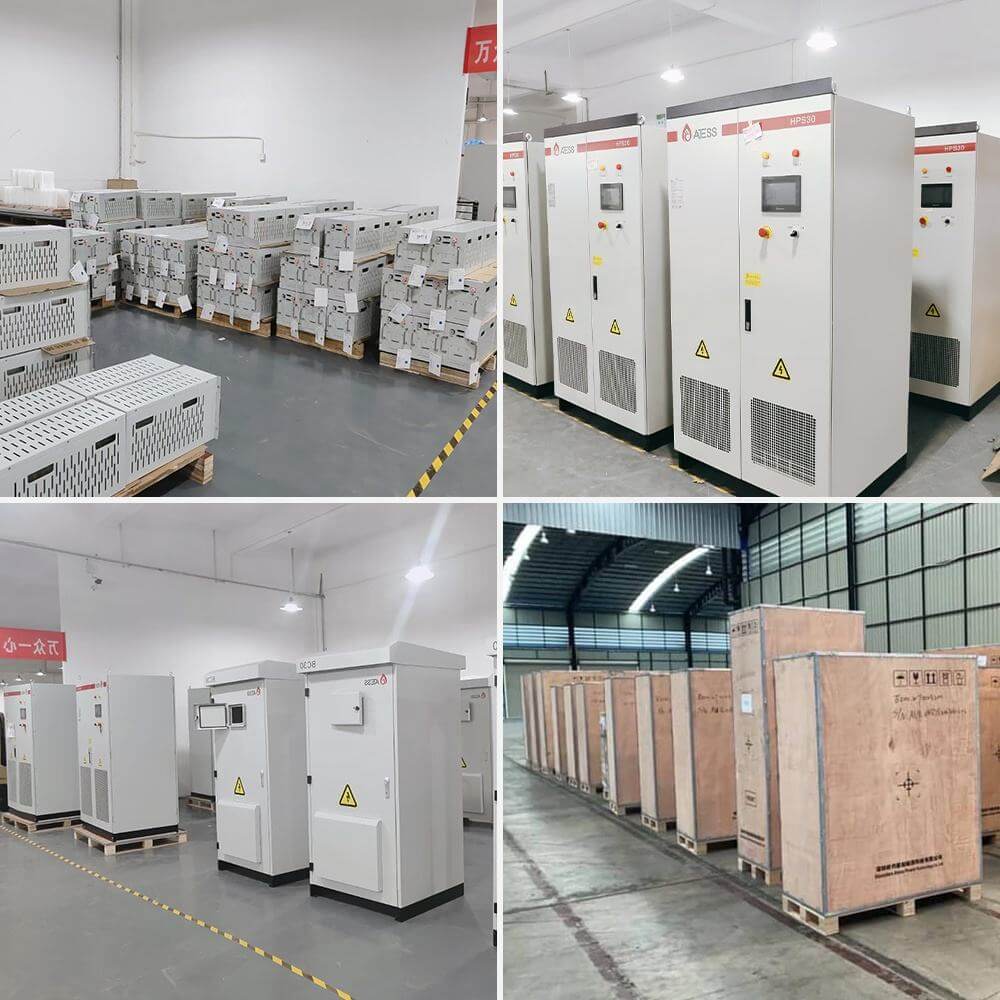

Package and Delivery

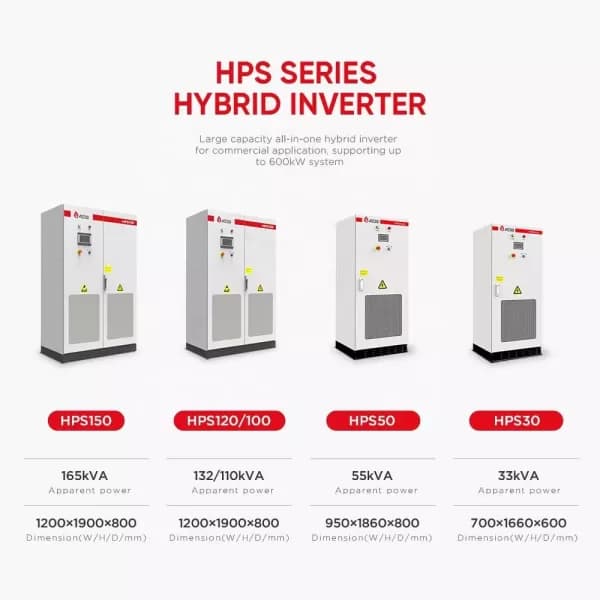

Mdoel | HPS30KW | HPS50 | HPS100KW | HPS120 | HPS150KW |
AC (Grid-connected) | |||||
Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
Rated voltage | 400V | ||||
Rated current | 43A | 72A | 144A | 173A | 217A |
Voltage range | 360V – 440V | ||||
Rated frequency | 50/60Hz | ||||
Frequency range | 45~55/55~65Hz | ||||
THDI | <3% | ||||
PF | 0.8lagging~0.8leading | ||||
AC connection | 3/N/PE | ||||
AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA |
AC(Off-grid) | |||||
Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
Rated voltage | 400V | ||||
Rated current | 43A | 72A | 144A | 173A | 217A |
THDU | ≤2%linear | ||||
Rated frequency | 50/60Hz | ||||
Overload capability | 110%-10 mins 120%-1 min | ||||
DC (Battery and PV) | |||||
Max PV open-circuit voltage | 1000V DC | ||||
MAX PV power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp |
PV MPPT voltage range | 480V-800V DC | ||||
Battery voltage range at Max.charge power | 450V-600V | 500V-600V | 500V-600V | 517V-600V | 500V-600V |
Battery voltage range | 352-600V | ||||
Max.charge power | 45kw | 75kw | 150kw | 180kw | 225kw |
Max.discharge power | 33kW | 55kW | 110kW | 132kW | 165kW |
Max.charge current | 100A | 150A | 300A | 350A | 450A |
Max.discharge current | 93A | 156A | 313A | 374A | 467A |
General Information | |||||
Protection degree | IP20 | ||||
Noise emission | <65dB(A)@1m | ||||
Operating temperature | -25 °C~+55 °C | ||||
Cooling | Forced-air | ||||
Relative humidity | 0-95% non-condensing | ||||
Maximum altitude | 6000m (derate over 3000m) | ||||
Dimension (W/H/D) | 950/1860/750mm | 1200/1900/800mm | |||
Weight | 505kg | 610kg | 948kg | 1025kg | 1230kg |
Build-in transformer | Yes | ||||
Transfer between on/off grid | Automatic≤10ms | ||||
Standby consumption | <30w | ||||
Communication | |||||
Display | Touch screen | ||||
Communication | RS485/CAN | ||||
Certificate | |||||
Certificate | CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011 | ||||
