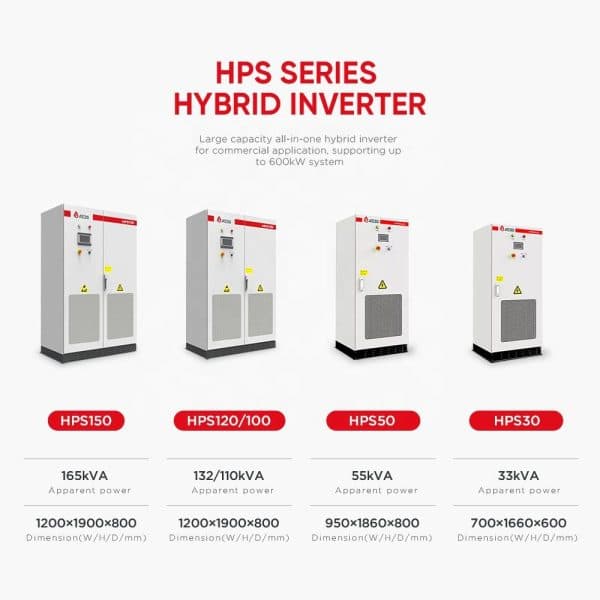

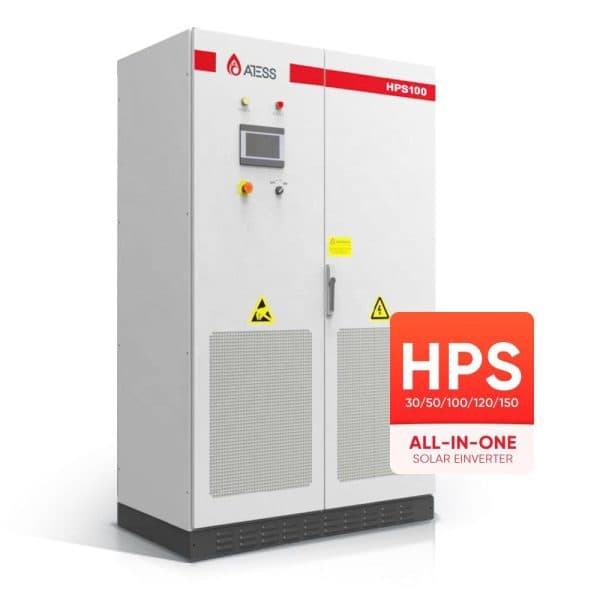

Atess HPS30/50/100/120/150 Hybrid Solar Inverter
All in one hybrid inverter.
Programmable working mode.
Scalable design:Quadruple capacity by paralleling 4 units.
Hot back-up One inverter fails in parallel system, the other(s) takes over seamlessly.
Touchscreen LCD:More convenient for parameter setting and maintenance.
Seamless transfer:Uninterruptable power supply guaranteed.
Dry contact output: Supports remote control of DG.

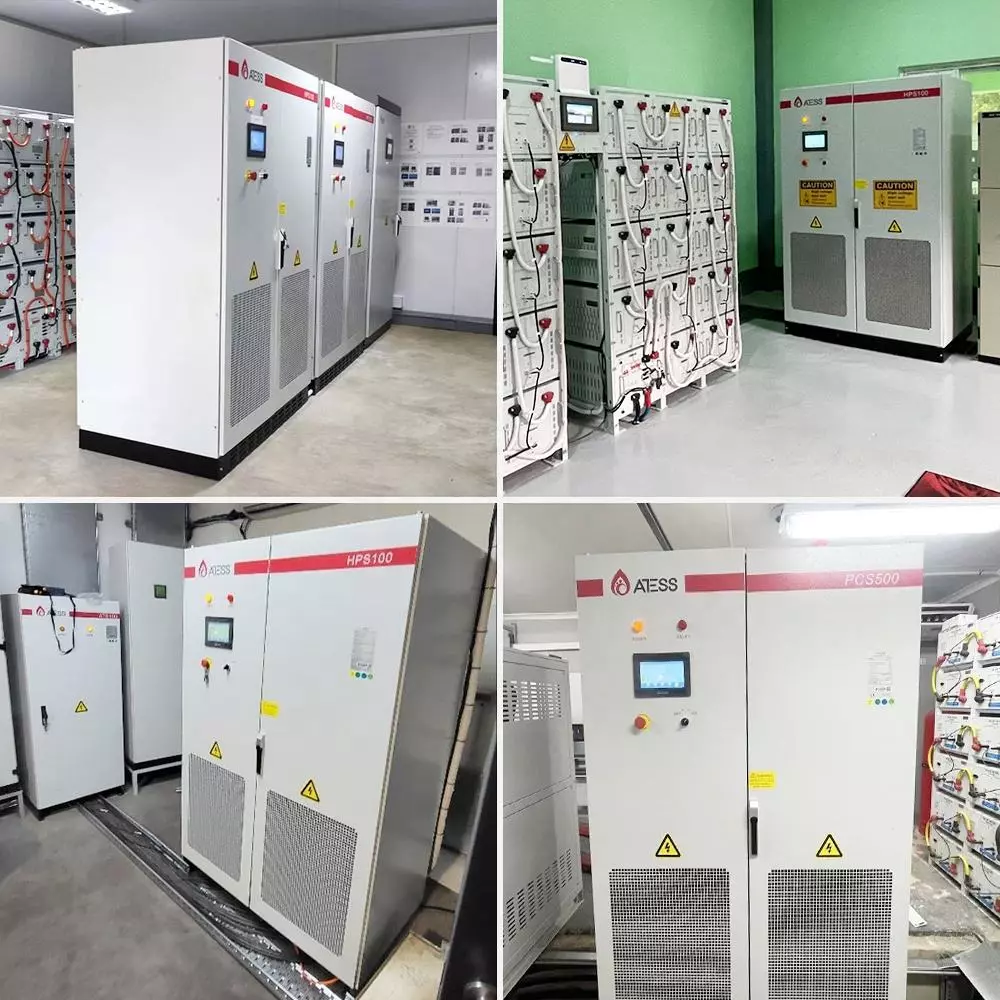

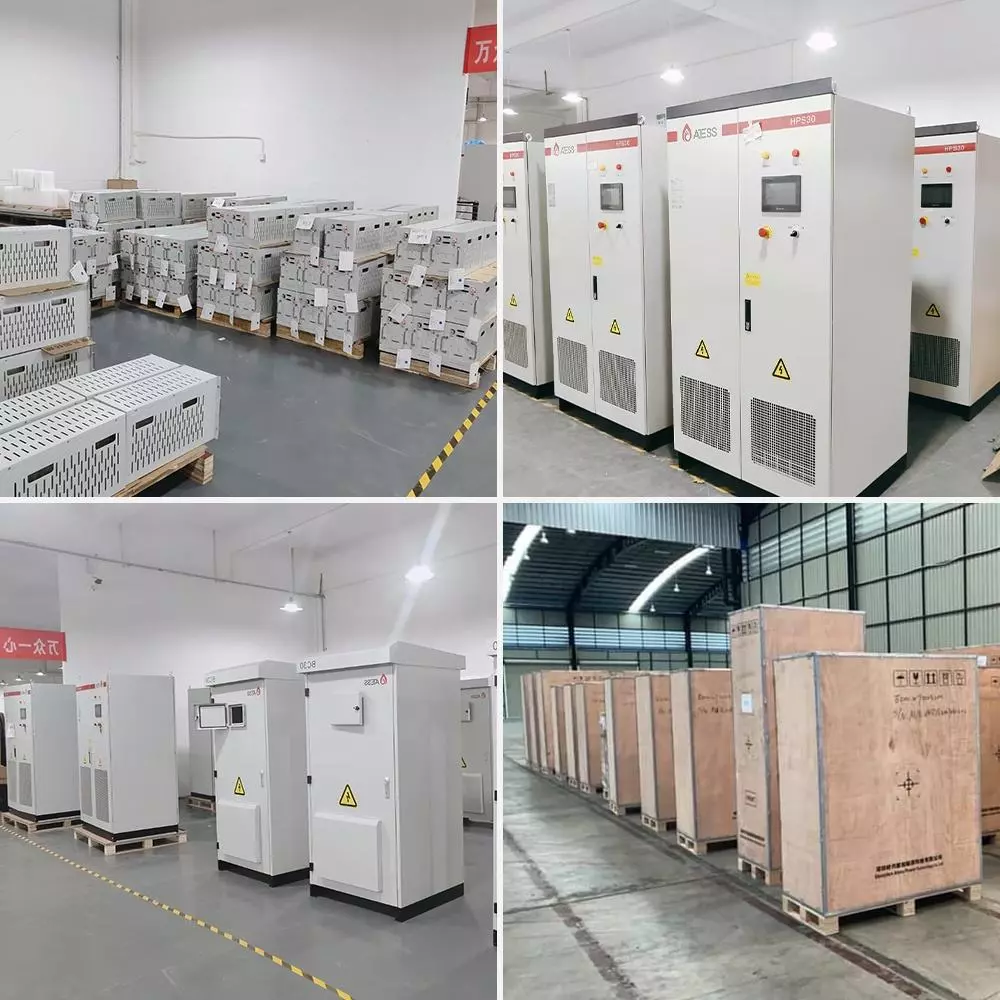

Package and Delivery
| Mdoel | HPS30 | HPS50 | HPS100 | HPS120 | HPS150 |
| AC (Grid-connected) | |||||
| Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
| Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
| Rated voltage | 400V | ||||
| Rated current | 43A | 72A | 144A | 173A | 217A |
| Voltage range | 360V – 440V | ||||
| Rated frequency | 50/60Hz | ||||
| Frequency range | 45~55/55~65Hz | ||||
| THDI | <3% | ||||
| PF | 0.8lagging~0.8leading | ||||
| AC connection | 3/N/PE | ||||
| AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA |
| Mdoel | HPS30 | HPS50 | HPS100 | HPS120 | HPS150 |
| AC (Grid-connected) | |||||
| Apparent power | 33kVA | 55kVA | 110kVA | 132kVA | 165kVA |
| Rated power | 30kW | 50kW | 100kW | 120kW | 150kW |
| Rated voltage | 400V | ||||
| Rated current | 43A | 72A | 144A | 173A | 217A |
| Voltage range | 360V – 440V | ||||
| Rated frequency | 50/60Hz | ||||
| Frequency range | 45~55/55~65Hz | ||||
| THDI | <3% | ||||
| PF | 0.8lagging~0.8leading | ||||
| AC connection | 3/N/PE | ||||
| AC input | 60kVA | 100kVA | 200kVA | 240kVA | 240kVA |
| DC (Battery and PV) | |||||
| Max PV open-circuit voltage | 1000V DC | ||||
| MAX PV power | 45kWp | 75kWp | 150kWp | 180kWp | 225kWp |
| PV MPPT voltage range | 480V-800V DC | ||||
| Battery voltage range at Max.charge power | 450V-600V | 500V-600V | 500V-600V | 517V-600V | 500V-600V |
| Battery voltage range | 352-600V | ||||
| Max.charge power | 45kw | 75kw | 150kw | 180kw | 225kw |
| Max.discharge power | 33kW | 55kW | 110kW | 132kW | 165kW |
| Max.charge current | 100A | 150A | 300A | 350A | 450A |
| Max.discharge current | 93A | 156A | 313A | 374A | 467A |
| General Information | |||||
| Protection degree | IP20 | ||||
| Noise emission | <65dB(A)@1m | ||||
| Operating temperature | -25 °C~+55 °C | ||||
| Cooling | Forced-air | ||||
| Relative humidity | 0-95% non-condensing | ||||
| Maximum altitude | 6000m (derate over 3000m) | ||||
| Dimension (W/H/D) | 950/1860/750mm | 1200/1900/800mm | |||
| Weight | 505kg | 610kg | 948kg | 1025kg | 1230kg |
| Build-in transformer | Yes | ||||
| Transfer between on/off grid | Automatic≤10ms | ||||
| Standby consumption | <30w | ||||
| Communication | |||||
| Display | Touch screen | ||||
| Communication | RS485/CAN | ||||
| Certificate | |||||
| Certificate | CE , MEA , PEA , EN 61000-6-4:2007+A1:2011 , EN61000-6-2:2005 , EN62109-1:2010 , EN62109-2:2011 | ||||
