Deye Hybrid Inverter 5kw Basic Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.

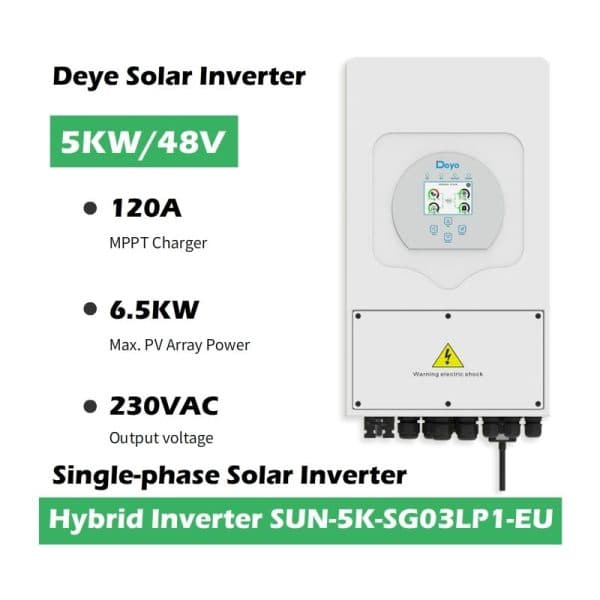

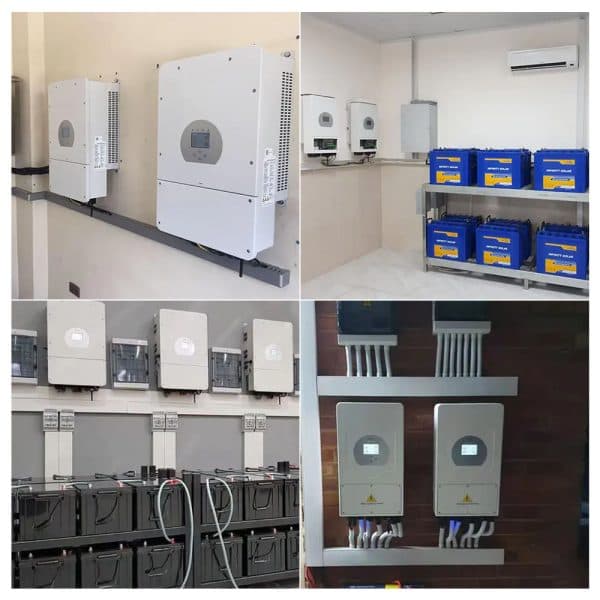

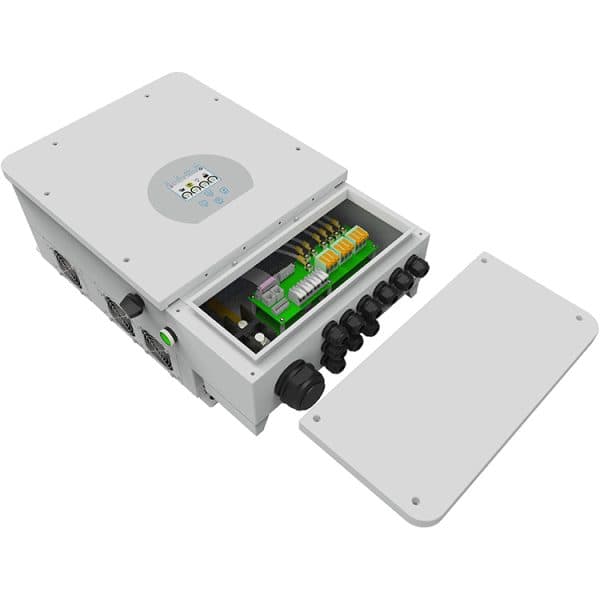

Deye Sun 5K SG03LP1 Features
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Model | SUN-3.6K-SG03LP1-EU | SUN-5K-SG03LP1-EU | SUN-6K-SG03LP1-EU |
Battery Input Data | |||
Battery Type | Lead-acid or Lithium-ion | ||
Battery Voltage Range (V) | 40~60V | ||
Max. Charging Current (A) | 90A | 120A | 135A |
Max. Discharging Current (A) | 90A | 120A | 135A |
Charging Curve | 3 Stages / Equalization | ||
External Temperature Sensor | Optional | ||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | ||
PV String Input Data | |||
Max. DC Input Power (W) | 4680W | 6500W | 7800W |
PV Input Voltage (V) | 370V (125V~500V) | ||
MPPT Range (V) | 150~425V | ||
Full Load DC Voltage Range | 300~425V | ||
Start-up Voltage (V) | 125V | ||
PV Input Current (A) | 13A+13A | ||
Max. PV ISC (A) | 17A+17A | ||
No.of MPPT Trackers | 2 | ||
No.of Strings Per MPPT Tracker | 1 | ||
AC Output Data | |||
Rated AC Output and UPS Power (W) | 3600W | 5000W | 6000W |
Max. AC Output Power (W) | 3690W | 5500W | 6600W |
Peak Power (off grid) | 2 times of rated power, 10 S | ||
AC Output Rated Current (A) | 16.4/15.7 | 22.7/21.7 | 27.3/26.1 |
Max. AC Current (A) | 18/17.2 | 25/23.9 | 30/28.7 |
Max. Continuous AC Passthrough (A) | 35A | 40A | |
Power Factor | 0.8 leading to 0.8 lagging | ||
Output Frequency and Voltage | 50/60Hz; 220/230 / 240Vac (single phase) | ||
Grid Type | Single Phase | ||
Current Harmonic Distortion | THD<3% (Linear load<1.5%) | ||
Efficiency | ||||
Max. Efficiency | 97.60% | |||
Euro Efficiency | 96.50% | |||
MPPT Efficiency | 99.90% | |||
Protection | ||||
PV Input Lightning Protection | Integrated | |||
Anti-islanding Protection | Integrated | |||
PV String Input Reverse Polarity Protection | Integrated | |||
Insulation Resistor Detection | Integrated | |||
Residual Current Monitoring Unit | Integrated | |||
Output Over Current Protection | Integrated | |||
Output Shorted Protection | Integrated | |||
Output Over Voltage Protection | Integrated | |||
Surge protection | DC Type II / AC Type Ⅲ | |||
Certifications and Standards | ||||
Grid Regulation | VDE 0126, AS4777, NRS2017, G98, G99, IEC61683, IEC62116, IEC61727, RD1699: 2011, XP C15-712-3: 2019-05 | |||
Safety Regulation | IEC62109-1, IEC62109-2 | |||
EMC | EN61000-6-1, EN61000-6-3 | |||
General Data | ||||
Operating Temperature Range (℃) | -40~60℃, >45℃ Derating | |||
Cooling | Smart cooling | |||
Noise (dB) | <30 dB | |||
Communication with BMS | RS485; CAN | |||
Weight (kg) | 20.5 | |||
Size (mm) | 330W×580H×232D | |||
Protection Degree | IP65 | |||
Installation Style | Wall-mounted | |||
Warranty | 5 years | |||
