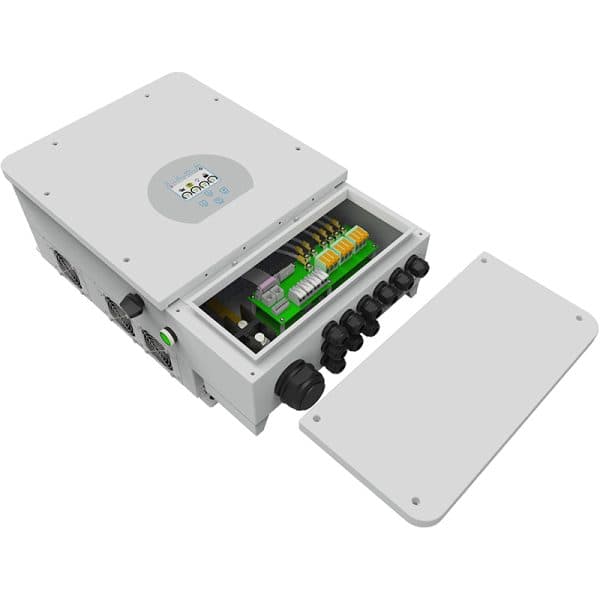

Deye Sun Sun 8k Sg01lp1 Description
1.Deye inverter is easy to operate, convenient and fully functional.
2.Suitable for solar energy system, household, commercial, agricultural, outdoor use, etc.
3.Smart diagnosis, high switch frequency, WiFi/GPRS Real time monitoring.
4.High efficiency up to 99%. Ingress protection IP65.
5.App store support IOS/Android.
6.Vesol solar energy system product supply chain has received favors and praises from various overseas home use customers, small business customers , government projects.
Deye 8kw Single Phase Inverter Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Deye Sun 8k Sg01lp1 Us Eu Features
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
Technical Datasheet | ||||
Model | 7.6KW | 8KW | ||
Battery Input Data | ||||
Battery Type | Lead-acid or Lithium-iron | |||
Battery Voltage Range (V) | 40-60V | |||
Max.Charging Current (A) | 190A | 190A | ||
Max.Discharging Current (A) | 190A | 190A | ||
Charging Curve | 3 Stages/Equalization | |||
External Temperature Sensor | Optional | |||
Charging Strategy for Li-Ion Battery | Self-adaption to BMS | |||
PV Strings Input Data | ||||
Max.DC Input Power (W) | 9880W | 10400W | ||
PV Input Voltage (V) | 370V(100V~500V) | |||
MPPT Range (V) | 125-425V | |||
Full Load DC Voltage Range | 240-425V | |||
Start-up Voltage (V) | 150V | |||
PV Input Current (A) | 18A+18A | |||
No.of MPPT Trackers | 2 | |||
No.of Strings Per MPPT Tracker | 2+2 | |||
AC Output Data | ||||
Rated AC Output and UPS Power (W) | 7600W | 8000W | ||
Max AC Output Power (W) | 8360W | 8800W | ||
Peak Power(off grid) | 2 times of rated power,10S | |||
AC Output Rated Current(A) | 33A | 35A | ||
Max.AC Current(A) | 38A | 40A | ||
Max Continuous AC Passthrough(A) | 50A | |||
Power Factor | 0.8 leading to 0.8 lagging. | |||
Output Frequency and Voltage | 50/60Hz; 230(single phase) | |||
Grid Type | Single Phase | |||
Current Harmonic Distortion | THD<3%(Linear load<1.5%) | |||
Efficiency | ||||
Max.Efficiency | 97.60% | |||
Euro Efficiency | 97.00% | |||
MPPT Efficiency | 99.90% | |||
Certifications and Standards | ||||
Grid Regulation | VDE 0126,AS4777,NRS2017,G98,G99,IEC61683,IEC62116,IEC61727 | |||
Safety Regulation | IEC62109-1, IEC62109-2 | |||
EMC | EN61000-6-1, EN61000-6-3 | |||
General Data | ||||
Operating Temperature Range (℃) | -25~60℃, >45℃ Derating | |||
Cooling | Fan | |||
Noise (dB) | <30 | |||
Communication with BMS | RS485; CAN | |||
Weight (kg) | 32 | |||
Size (Length*Width*Height mm) | 670×420×233mm | |||
Protection Degree | IP65 | |||
Installation Style | Wall-mounted | |||
Warranty | 5 years | |||
