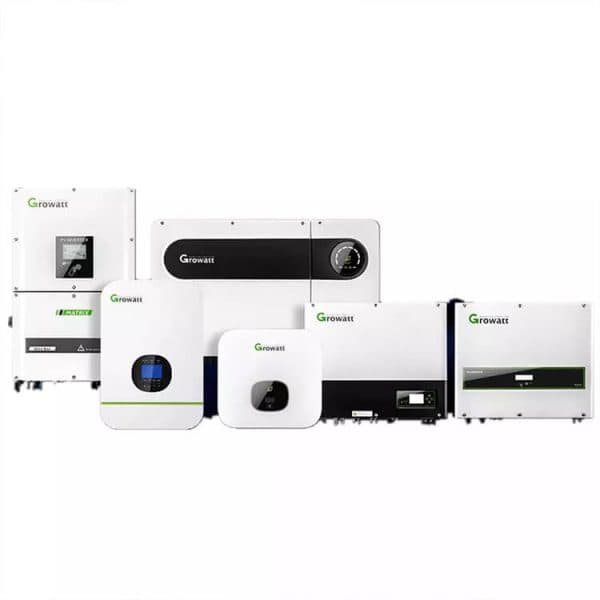

Products Description

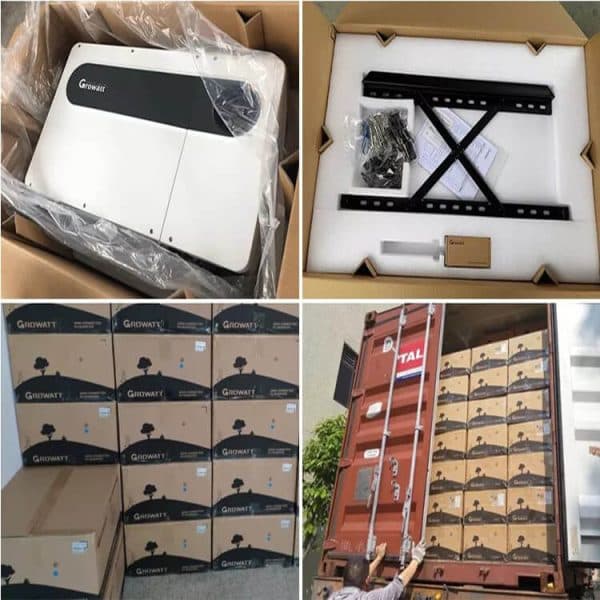

Package and Delivery

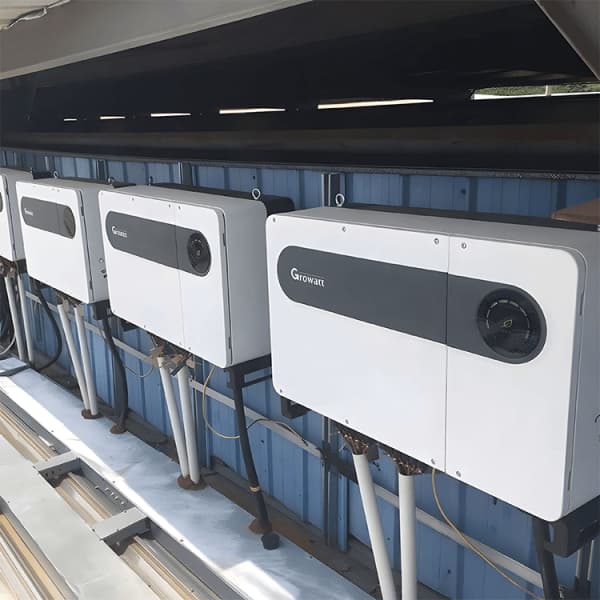

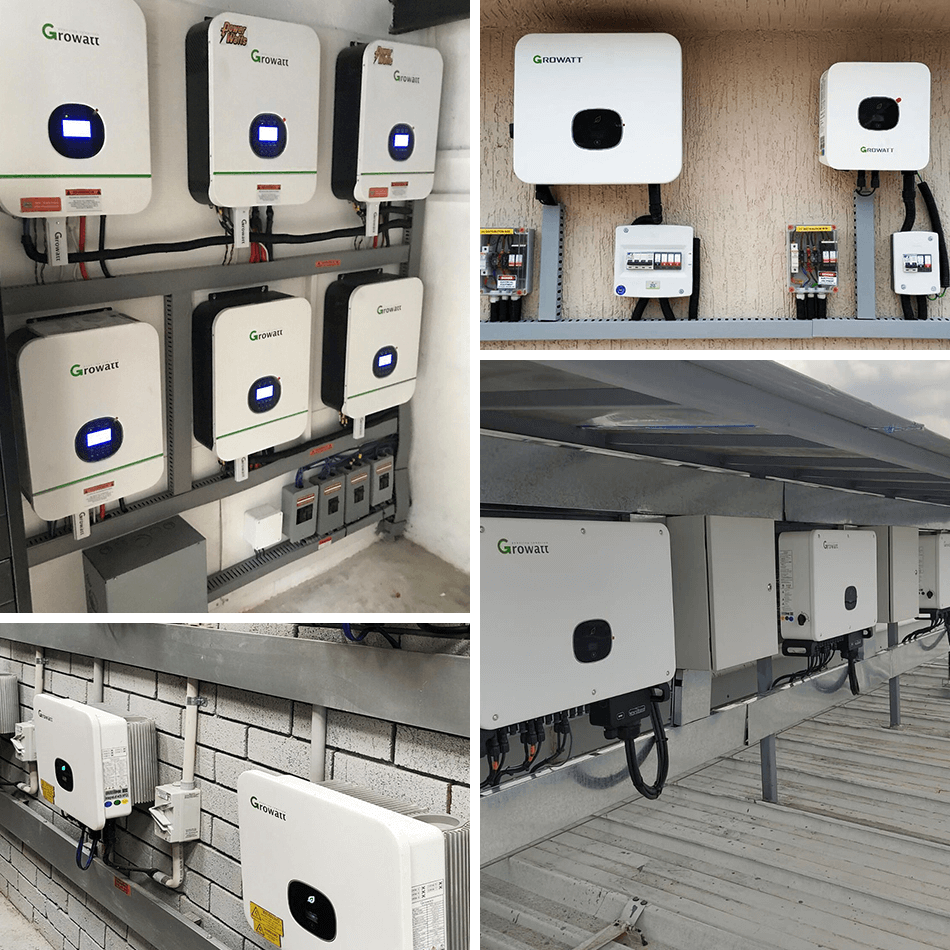

Projects

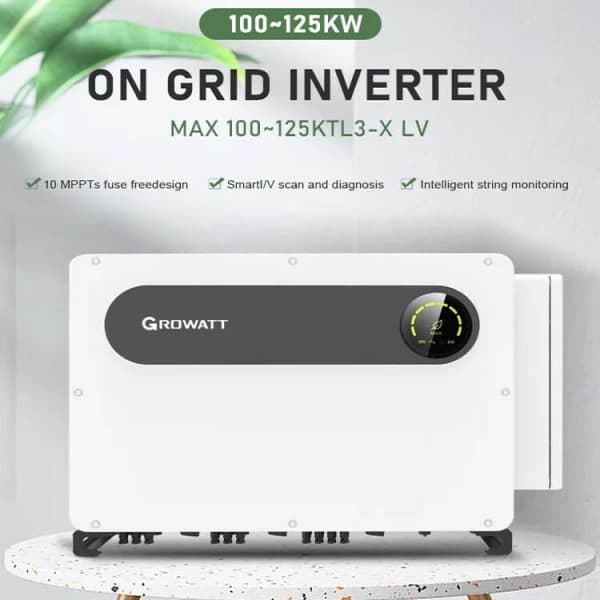

Model | MAX 100KTL3-X LV | MAX 110KTL3-X LV | MAX 120KTL3-X LV | MAX 125KTL3-X LV |
Input data (DC) | ||||
Max.DC vatage | 1100V | |||
Start voltoge | 195V | |||
Nominal voltage | 600V | |||
MPP vatage range | 180V-1000V | |||
No.of MPP trackers | 10 | |||
No. of PV strings per MPP trocker | 2 | |||
Max.Input current per MPP tracker | 32A | |||
Max.short-circult curent per MPP tracker | 40A | |||
Output Data (AC) | ||||
AC nominal power | 100000W | 110000W | 120000W | 125000W |
Max.AC apparent power | 110000VA | 121000VA | 132000VA | 137500VA |
Nominal AC voltage(range*) | 230V/400V[340-440VAC) | |||
AC grid frequency(range*) | 50/60 Hz(45~55Hz/55-65 Hz) | |||
Max.output cument | 158.8A | 174.6A | 190.5A | 198.5A |
Adjustable power Factor | 0.8leading …0.8lagging | |||
THDi | <3% | |||
AC grid connection type | 3W/N/PE | |||
Efficiency | ||||
Max.efficiency | 98.8% | |||
European efficiency | 98.4% | 98.5% | 98.5% | 98.5% |
MPPT efficiency | 99.9% | |||
