Basic System Architecture
The following illustration shows basic application of this inverter. It also includes following devices to have a Complete running system. – Generator or Utility – PV modules Consult with your system integrator for other possible system architectures depending on your requirements. This inverter can power all kinds of appliances in home or office environment, including motor type appliances such as refrigerator and air conditioner.
Key product features and benefits
- Colorful touch LCD, IP65 protection degree
- 6 time periods for battery charging/discharging
- Max. charging/discharging current of 190A
- Max.16pcs parallel
- DC couple and AC couple to retrofit existing solar system
- Support storing energy from diesel generator
- Max. battery charge efficiency of 95.4%
- Unique Smart Load application and Grid peak shaving function
- 4ms fast transfer from on-grid to off-grid mode, ensuing the traditional fixed frequency air conditioner works well
- Certified by UL, CE, IEC, VDE, NRS, VFR, AS4777.2, CEI and INMETRO etc.
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

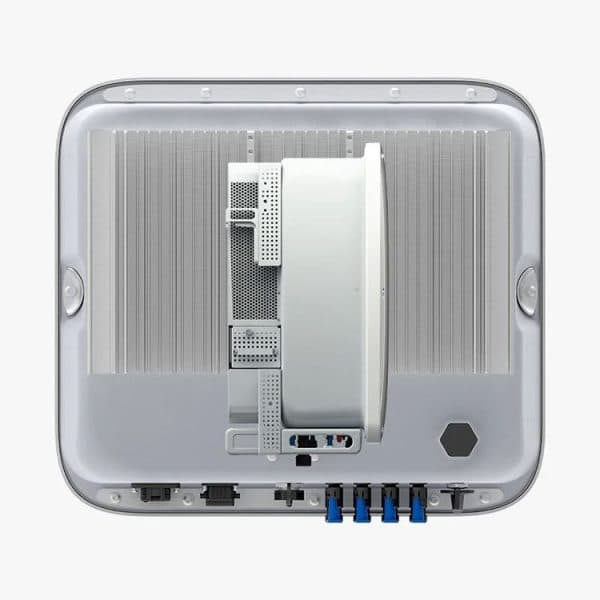

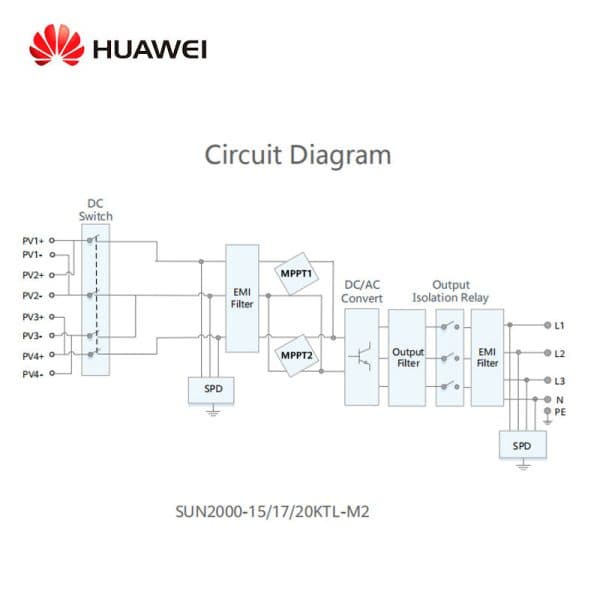

| Technical Specification | SUN2000-12KTL-M2 | SUN2000-15KTL-M2 | SUN2000-17KTL-M2 | SUN2000-20KTL-M2 |
| Efficiency | ||||

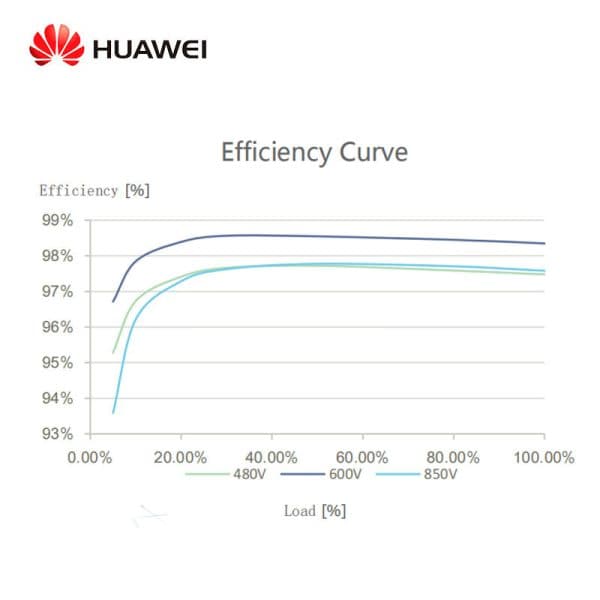

| Max. efficiency | 98.50% | 98.65% | 98.65% | 98.65% |
| European weighted efficiency | 98.00% | 98.30% | 98.30% | 98.30% |
| Input | ||||
| Recommended max. PV power | 18,000 Wp | 22,500 Wp | 25,500 Wp | 30,000 Wp |
| Max. input voltage | 1,080 V | |||
| Operating voltage range | 160 V ~ 950 V | |||
| Start-up voltage | 200 V | |||
| Rated input voltage | 600 V | |||
| Max. input current per MPPT | 22 A | |||
| Max. short-circuit current | 30 A | |||
| Number of MPP trackers | 2 | |||
| Max. input number per MPP tracker | 2 | |||
| Output | ||||
| Grid connection | Three phase | |||
| Rated output power | 12,000 W | 15,000 W | 17,000 W | 20,000 W |
| Max. apparent power | 13,200 VA | 16,500 VA | 18,700 VA | 22,000 VA |
| Rated output voltage | 220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE | |||
| Rated AC grid frequency | 50 Hz / 60 Hz | |||
| Max. output current | 20 A | 25.2 A | 28.5 A | 33.5 A |
| Adjustable power factor | 0.8 leading … 0.8 lagging | |||
| Max. total harmonic distortion | ≤ 3 % | |||
| Features & Protections | ||||
| Input-side disconnection device | Yes | |||
| Anti-islanding protection | Yes | |||
| AC over-current protection | Yes | |||
| AC short-circuit protection | Yes | |||
| AC over-voltage protection | Yes | |||
| DC reverse-polarity protection | Yes | |||
| DC surge protection | TYPE II | |||
| AC surge protection | Yes, compatible with TYPE II protection class according to EN/IEC 61643-11 | |||
| Residual current monitoring unit | Yes | |||
| Arc fault protection | Yes | |||
| Ripple receiver control | Yes | |||
| Integrated PID recovery | Yes | |||
| General Data | ||||
| Operation temperature range | -25 ~ +60 °C (-13 °F ~ 140 °F) | |||
| Relative humidity | 0 % RH ~ 100% RH | |||
| Max. operating altitude | 4,000 m (13,123 ft.) (Derating above 2000 m) | |||
| Cooling | Natural Convection | |||
| Display | LED Indicators; Integrated WLAN + FusionSolar App | |||
| Communication | RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE (Optional) 4G / 3G / 2G via Smart Dongle-4G (Optional) | |||
| Weight (with mounting plate) | 25 kg | |||
| Dimensions (W x H x D) (incl. mounting plate) | 525 x 470 x 262 mm (20.7 x 18.5 x 10.3 inch) | |||
| Degree of protection | IP65 | |||
| Nighttime Power Consumption | < 5.5 W 5 | |||
| Optimizer Compatibility | ||||
| DC MBUS compatible optimizer | SUN2000-450W-P | |||
| Standard Compliance (more available upon request) | ||||
| Safety | EN/IEC 62109-1, EN/IEC 62109-2 | |||
| Grid connection standards | G98, G99, EN 50549, CEI 0-21, CEI 0-16, VDE-AR-N-4105, VDE-AR-N-4110, AS 4777.2, C10/11, ABNT, VFR 2019, RD 1699, RD 661, PO 12.3, TOR D4, IEC61727, IEC62116, DEWA | |||
| *1 Inverter max input PV power is 40,000 Wp when long strings are designed and fully connected with SUN2000-450W-P power optimizers. *2 The maximum input voltage is the upper limit of the DC voltage. Any higher input DC voltage would probably damage inverter. *3 Any DC input voltage beyond the operating voltage range may result in inverter improper operating. *4 SUN2000-12~20KTL-M2 raises potential between PV- and ground to above zero through integrated PID recovery function to recover module degradation from PID. Supported module types include: P-type (mono, poly) *5. <10 W when PID recovery function is activated. | ||||
