Featutres

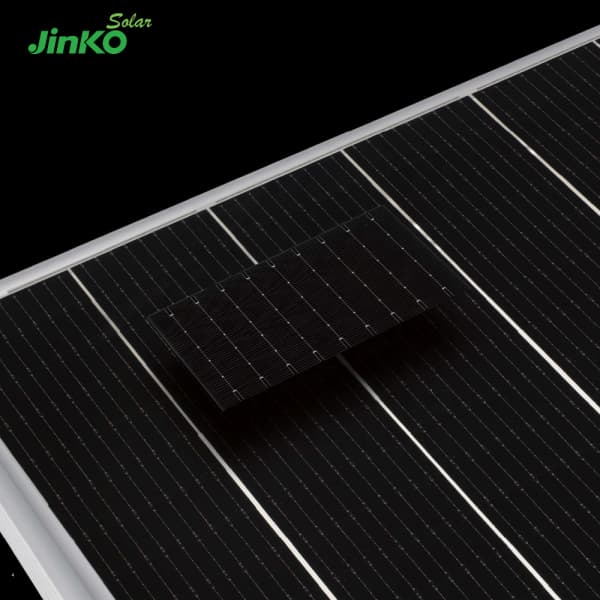

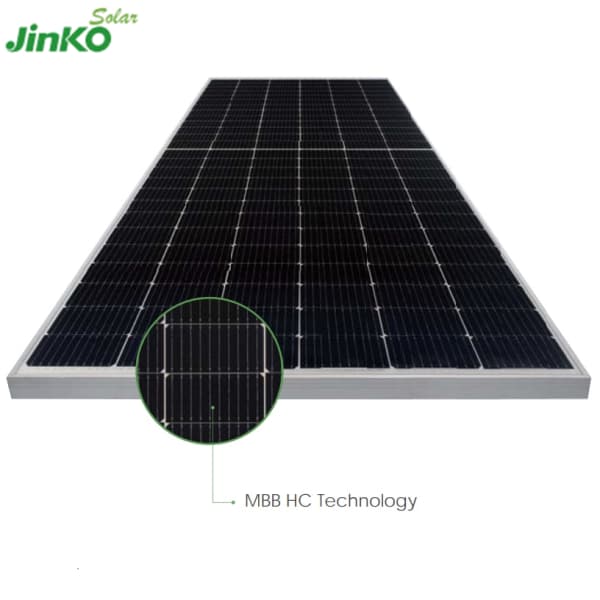

- Multi Busbar Technology
- PID Resistance
- Higher Power Output
- Longer life-time power yield
- Enhanced mechanical load
- Linear performance warranty
What can Vesol do?
- High Quality Products
- DDP Service
- Friendly and Professional Customer Service
- Solar system solution design
- Solar inverter, lithium battery storage system also are available.
- Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )
SPECIFICATIONS | ||||
Cell | Mono | |||
Weight | 28.9kg | |||
Dimensions | 2274x 1134 x 35mm | |||
Cable | TUV 1×4.0mm2 | |||
No. of Cells | 144 (6×24) | |||
Junction Box | IP68 | |||
Cable Length | (+): 400mm , (-): 200mm or Customized Length | |||
Packaging Configuration | 31pcs/Pallet, 620pcs/40ft Container | |||
Bearing Standard | |||||
Rated Maximum Power (Pmax) [W] | 530 | 535 | 540 | 545 | 550 |
Maximum Power Voltage(Vmpp/V) | 40.56 | 40.63 | 40.7 | 40.8 | 40.9 |
Maximum Power Current(Impp/A) | 13.07 | 13.17 | 13.27 | 13.36 | 13.45 |
Open Circuit Voltage(Voc/V) | 49.26 | 49.34 | 49.42 | 49.52 | 49.62 |
Short Circuit Current(Isc/A) | 13.71 | 13.79 | 13.85 | 13.94 | 14.03 |
Module Efficiency [%] | 20.55% | 20.75% | 20.94% | 21.13% | 21.33% |
Power Tolerance | 0~+3% | ||||
Temperature coefficients of Pmax | -0.35%/℃ | ||||
Temperature coefficients of Voc | -0.28%/℃ | ||||
Temperature coefficients of Isc | 0.048%/℃ | ||||
STC | Irradiance 1000W/m², cell temperature 25°C, AM1.5 | ||||
