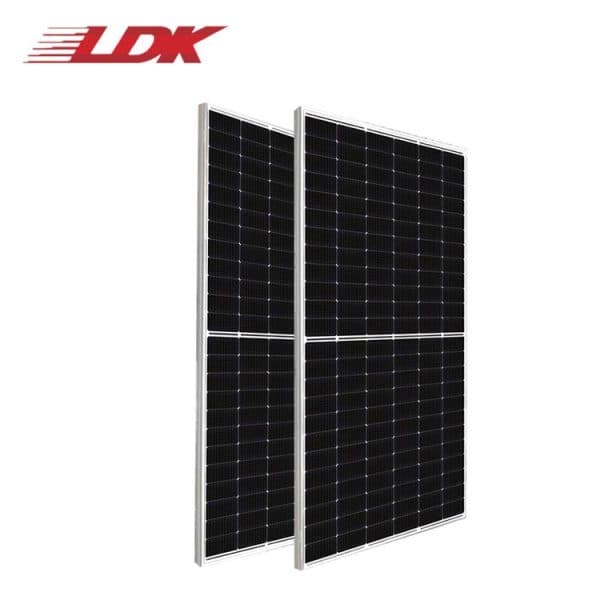

Highly Cost-effective LDK Brand 580W-600W Bifacial A Grade Monocrystalline Solar Panel

Key product features and benefits

High Quality Products
DDP Service
Friendly and Professional Customer Service
Solar system solution design
Solar inverter, lithium battery storage system also are available.
Multiple payment supported(T/T, Paypal, XTransfer, L/C, Western Union, D/P etc. )

Product number	580	585	590	595	600
quality assurance
product quality assurance	12 years
Power output guaranteed	12-year 91.5% output power guarantee, 25-year 84.3% output power guarantee
Electrical performance parameters (STC)
Peak power (Pmax)	580 Wp	585 Wp	590 Wp/td>	595 Wp	600 Wp
Peak working voltage (Vmpp)	33.94 V	34.12 V	34.32 V	34.5 V	34.7 V
Peak operating current (Impp)	17.1 A	17.15 A	17.2 A	17.25 A	17.3 A
Open circuit voltage (Voc)	40.8 V	41 V	41.2 V	41.4 V	41.6 V
Short circuit current (Isc)	18.11 A	18.16 A	18.21 A	18.26 A	18.32 A
Component efficiency	20.49%	20.67%	20.85%	21.02%	21.2%
Power deviation (positive)	3%	3%	3%	3%	3%
	Standard test conditions (STC): solar radiation flux 1000W/m2, atmospheric parameter 1.5, module temperature 25℃.

Electrical performance parameters (NOCT)
Peak power (Pmax)	439 Wp	443 Wp	447 Wp	450 Wp	454 Wp
Peak working voltage (Vmpp)	31.47 V	31.67 V	31.84 V	31.96 V	32.15 V
Peak operating current (Impp)	13.95 A	13.99 A	14.04 A	14.08 A	14.12 A
Open circuit voltage (Voc)	37.94 V	38.13 V	38.32 V	138.5 V	38.69 V
Short circuit current (Isc)	14.085 A	14.89 A	14.93 A	14.97 A	15.02 A
maximum endurance temperature	42±3 °C
	Cell nominal operating temperature (NOCT): solar radiation flux 800W/m2, atmospheric parameter 1.5, ambient temperature 20°C, wind speed 1 m/s.

temperature characteristics
Operating temperature	-40~85 °C
Temperature coefficient (Pmax)	-0.32 %/°C
Temperature Coefficient (Voc)	-0.26 %/°C
Temperature Coefficient (Isc)	0.054 %/°C
System Integration Parameters
Maximum system voltage	1500 V
Fuse rated current	25 A
physical parameters
Component size (height/width/thickness)	2172x1303x35 mm
weight	30 kg
Cell type	Monocrystalline silicon
Number of cells	120
border type	Anodized aluminum alloy
Junction box protection class	IP 68
Cable cross section	4 mm2
cable length	350 mm
